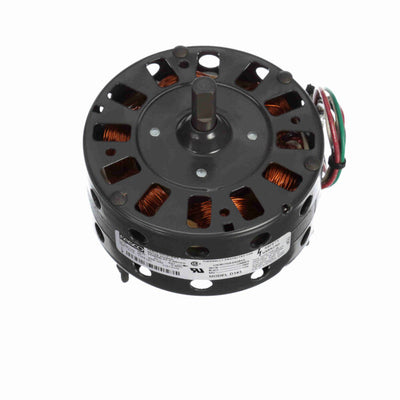

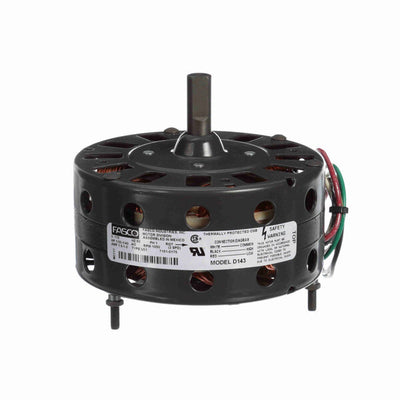

Fasco Unit Heater-Blower, 1050 RPM, 1/30-1/40 HP, 115 V, 42 Frame, Open Air Over
Fasco Unit Heater-Blower, 1050 RPM, 1/30-1/40 HP, 115 V, 42 Frame, Open Air Over
Availability:
Out-Stock
- Ventilation - Unit Heater Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 10" Leads with Quick Connect Terminal
- Extended Studs Lead End
$286.00 USD
PRODUCT INFO
Applications
1-, 2- and 3-speed motors designed as replacements on central heating and direct drive blower units. May also be used for ventilators, exhaust fans, etc.
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028628 |
| Output HP | 1/30-1/40 Hp |
| Frequency | 60 Hz |
| Current | 1.5/1.0 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 1.66 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Na |
| Overall Length | 4.52 in |
| Shaft Diameter | 0.500 in |
