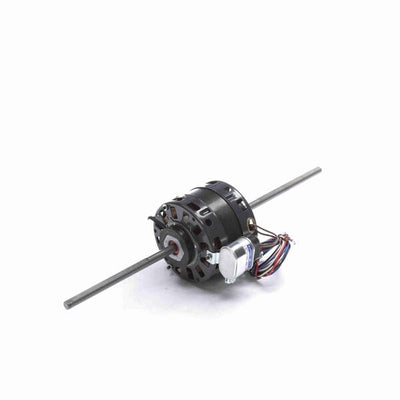

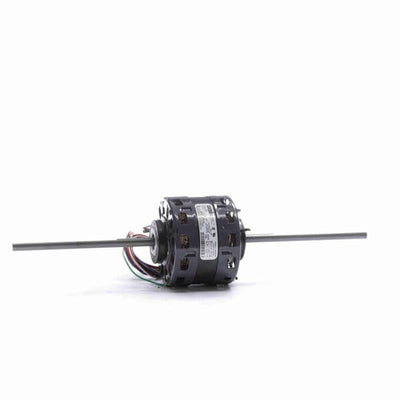

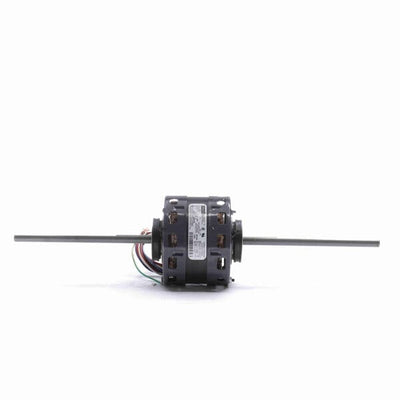

Fasco Window+Room Air Conditioniq, 1050 RPM, 1/6-1/10-1/20 HP, 115 V, 42 Frame, Open Air Over
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 30" Leads with .5" Strip
- Resilient Mounting Ring Lead End and Opposite Lead End
$500.00 USD
PRODUCT INFO
Applications
Designed for use in fan coil air conditioner/heating units in hotels, motels, offices and hospitals where a central system pumps hot or cold water or refrigerants to remote console type room units
Features
Thermally protected. Shaft: flatted and same length both ends, height is 3-1/2".
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029700 |
| Output HP | 1/6-1/10-1/20 Hp |
| Frequency | 60 Hz |
| Current | 2.8/1.8/1.0 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1550 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 8.5 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Na |
| Overall Length | 20.82 in |
| Shaft Diameter | 0.500 in |
