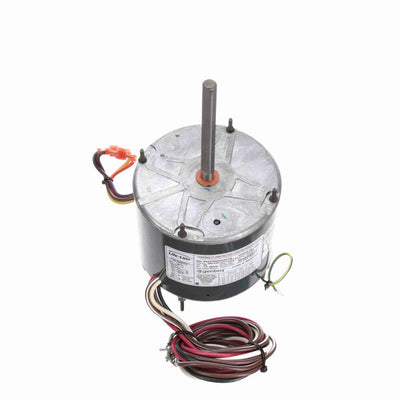

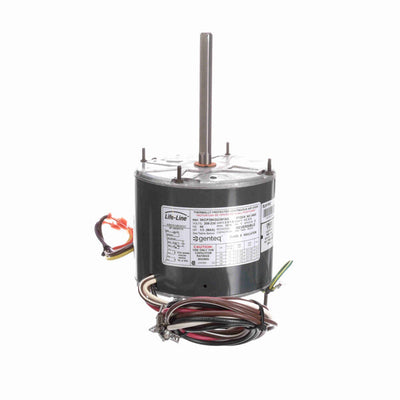

Genteq Condenser Fan Motor, 1075 RPM, 1/3 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

Availability:
Out-Stock
  • Life-Line - Condenser Fan - Heat Pump Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 38" Leads
  • Belly Band, Extended Clampbolts.

$230.00 USD

Sold Out

SKU:
3465
ID:
HM101-1S9-0106

PRODUCT INFO

Applications
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with belly band or extended clamp screw mounting

Features
Thru bolt or band mounting. Rheem mounting capability. Water slinger on shaft. Capacitor requirement noted on motor label. Air conditioning or heat pump duty. End shield drain holes with plugs

SPECIFICATIONS

Nameplate Specifications
UPC815585020097
Output HP1/3 Hp
Frequency60 Hz
Current2.60/ 1.80 A
Service Factor1
DutyContinuous Air Over
Frame48
Thermal ProtectionThermally Protected
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureTotally Enclosed Air Over
Ambient Temperature40 °C
CSAY


Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length4.07 in
Shaft Extension5.00 in
RotationReversible
Frame MaterialRolled Steel
Overall Length9.80 in
Shaft Diameter0.500 in
