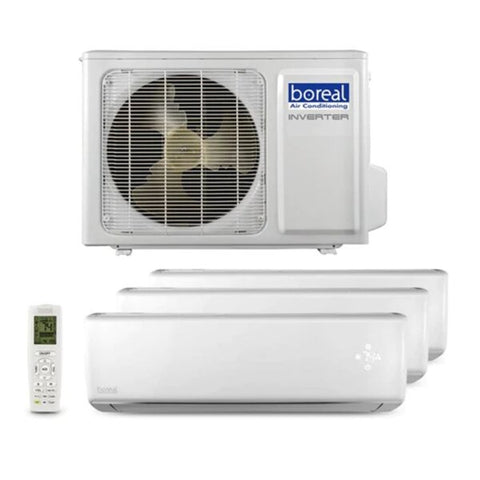

Boreal BRISA 24,000 BTU 2 Tons Tri Zone Wall Mount Ductless Mini Split System (9k, 9k, 9k) 230V
Rated Capacity: 24,000 BTU Cooling
Product Includes

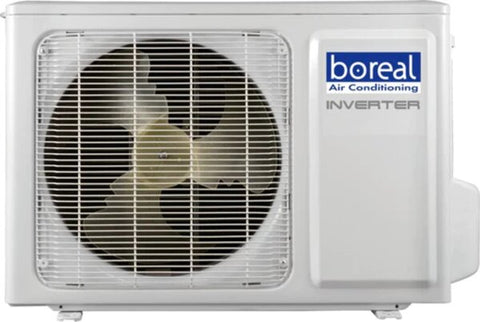

(1) Boreal BRISA - 24,000 BTU - Outdoor Condenser - Single Zone Only (MBRS24HPJ1OA)

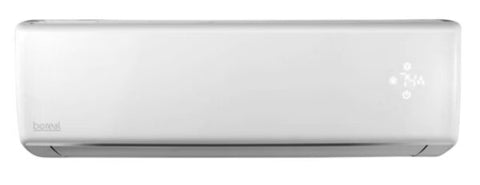

(3) Boreal BRISA 9,000 BTU Wall Mounted Unit - For Single Zone (BRS09HPJ1IA )

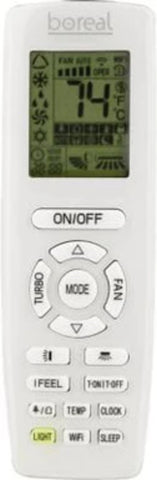

Wireless Remote Control
Required, but NOT included: 1/4" x 3/8" (x3) Line sets
$2,639.00 USD
SKU:
BRS24-W300
ID:
BRS100-0044
PRODUCT INFO
- Power Supply: 208-230V / 1Ph / 60Hz
- Refrigerant Charge: R-410a
- Limited Warranty: 3/5 Years on parts/compressor
SPECIFICATIONS
| Capacity | 24,000 BTU | |
| Cooling Capacity | 7500 - 33000 | |
| Cycle Hertz | 60 Hz | |
| Filter Type | Catechin | |
| HSPF | 11 | |
| Inverter | Yes | |
| Item Weight | 213.0000 pounds | |
| Line Set Size For Bundle | 1/4" x 3/8" (3) | |
| Minimum Circuit Amps | 23 | |
| Phase | Single | |
| Refrigerant | R-410A | |
| Room Size | 800 - 1,300 ft2 | |
| UPC | N/A | |
| Zone Capability | 3 Zones | |
| Equipment Type | Heat Pump | |
| SEER | 21 | |
| EER | 12.5 | |
| Voltage | 208-230 VAC | |
| Energy Star Rated | Yes | |
| Heating Capacity | 7500 - 27978 | |
| Tonnage | 2 | |
| Product Family | Brisa | |
| Mounting Type | Wall |
