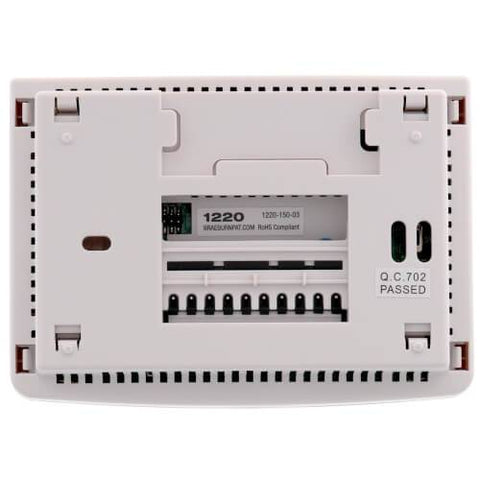

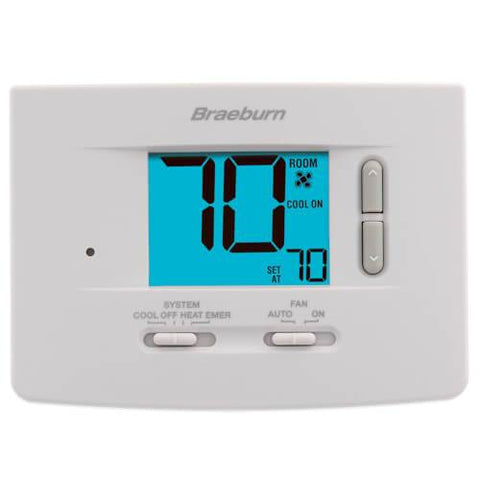

Braeburn Economy Model 1220 Thermostat (2 Heat/2 Cool)
Warranty: 5 Year
$54.54 USD
SKU:
BR1220
ID:
PH501-0016
Categories:
PRODUCT INFO
Features
- Large 3 Sq. In. Display with Bright Blue Backlight
- Adjustable Temperature Limits
- Hardwire or Battery Powered
- Permanent Memory Retains Settings
- Separate O & B Terminals
- Compressor Short Cycle Protection
- Adjustable Temperature Differentials
- Auxiliary Heat Indicator
- Low Battery Indication
- ESD Guard Electronic Circuitry
- Front Access Reset Button
- F / C Switch
- Gas / Electric Fan Switch
- Mount to Horizontal Box
Warranty: 5 Year
SPECIFICATIONS
| Dimensions: | 3.70” x 5.16” x 1.38” | ||
| Electric Rating: | 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 4 amp total maximum load (all terminals) | ||
| AC Power: | 18-30 Volt AC | ||
| DC Power: | 3.0 Volts DC (2 “AA” Alkaline batteries included) | ||
| Compatibility: | Conventional systems with up to two stages of heating and two stages of cooling; Heat pump systems with one compressor and up to one auxiliary stage; 250 - 750 millivolt heating systems | ||
| Control Range: | 45° to 90° F (7° to 32° C) | ||
| Display Range: | 40° to 99° F (5° to 37° C) | ||
| Accuracy: | +/- 1° F (+/- .5° C) | ||
| Differential: | 1st Stage - .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C) 2nd Stage - 2°, 3°, 4°, 5°, or 6° F (1°, 1.5°, 2°, 2.5°, or 3° C) | ||
| Storage Temperature: | 14° to 140° F (-10° to 60° C) | ||
| Operating Humidity: | 5% to 95% Relative Humidity | ||

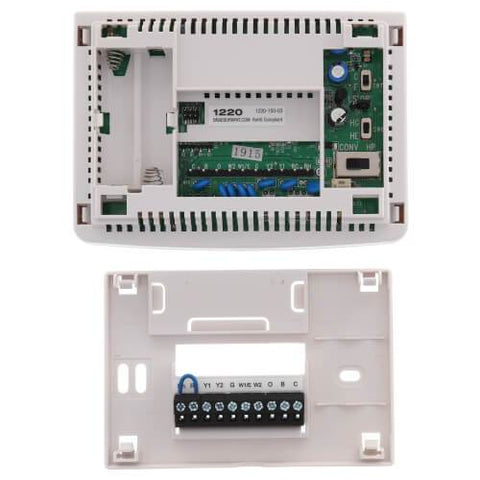

| Terminations: | Rh, Rc, O, B, C, Y1, Y2, E/W1, G, W2 |
