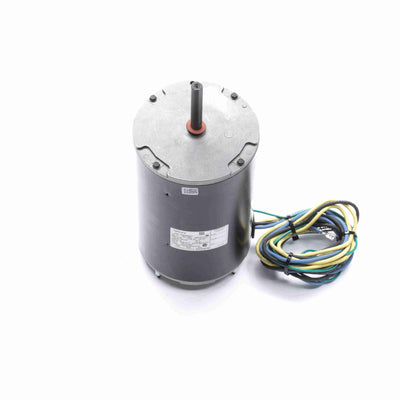

Century OEM Replacement Motor, 1140 RPM, 3/4 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • OEM Direct Replacement Motor
  • 5.6" Diameter - 48 Frame
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 60" Leads with Quick Connect Terminals
  • Extended Studs Opposite Shaft End, Vertical Shaft Down
  • 3 Phase
  • HM102-0004 replaces the following brands and item numbers: Carrier #HD46GK230

$805.00 USD

Title
Buy Now
SKU:
OCA3076
ID:
HM102-1S9-0004

SPECIFICATIONS

Nameplate Specifications
UPC786674027276
Output HP3/4 Hp
Frequency60 Hz
Current3.8 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1140 rpm
Phase3
Insulation ClassB
EnclosureTotally Enclosed
Ambient Temperature60 °C
CSAY
Technical Specifications

Electrical TypeThree Phase
Poles6
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeDouble Flat
Frame Length8.13 in
Shaft Extension1/2" FLAT in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.60 in
Shaft Diameter0.500 in
