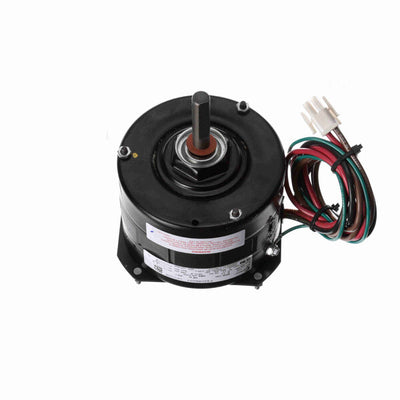

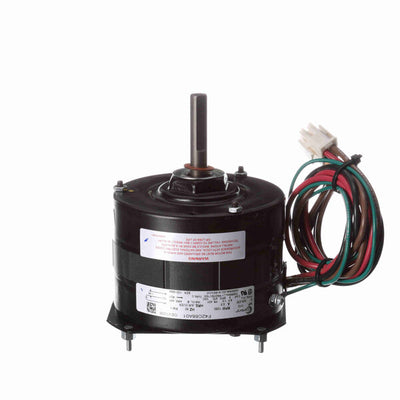

Century OEM Replacement Motor, 1050 RPM, 1/12 HP, 208-230 V, 42 Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 32" Leads with AMP Terminal Housing
  • Extended Studs Lead End, Vertical Shaft Down
  • HM102-0031 replaces the following brands and item numbers: Evcon #F42B53A48 or 1468-41L

$273.00 USD

Title
Buy Now
SKU:
OEV1006
ID:
HM102-1S9-0031

SPECIFICATIONS

Nameplate Specifications
UPC786674027498
Output HP1/12 Hp
Frequency60 Hz
Current0.5 A
Service Factor1
DutyAir Over
Frame42Y
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1050 rpm
Phase1
Insulation Class
EnclosureTotally Enclosed Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingPlate
Opp Drive End BearingSleeve
Shaft TypeFlat
Shaft Extension6.66 in
RotationClockwise Lead End
Frame MaterialNa
Overall Length
6.66 in
Shaft Diameter0.500 in
