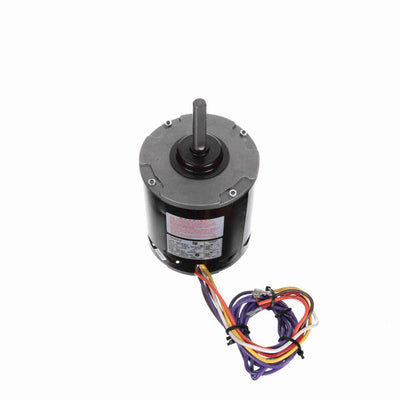

Century OEM Replacement Motor, 1075 RPM, 1 HP, 208-230/460 V, 48 Frame, Semi Enclosed
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Totally Enclosed Air over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads with Quick Connect Terminals
- Extended Studs Opposite Shaft End, Mounting Holes in Shell
$596.40 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674026873 |
| Output HP | 1 Hp |
| Frequency | 60 Hz |
| Current | 6.2/3.1 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230/460 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Round Belly Band |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 5.50 in |
| Shaft Extension | 3.5 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 10.05 in |
| Shaft Diameter | 0.625 in |
