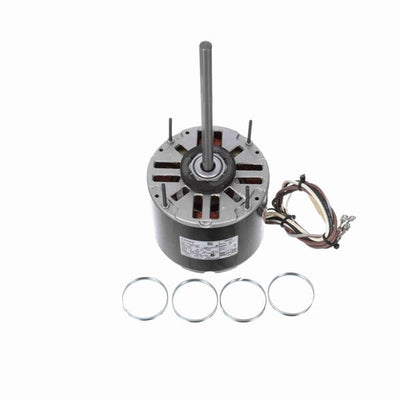

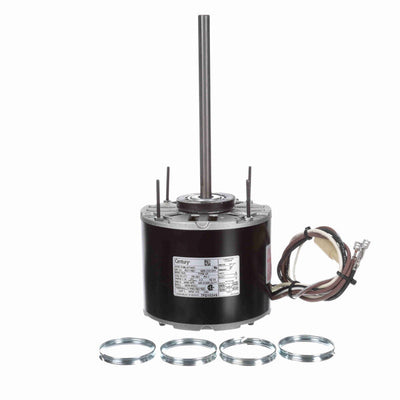

Century OEM Replacement Motor, 1625 RPM, 1/4 HP, 277 V, 48 Frame, Semi Enclosed

Availability:
In-Stock
  • Direct Drive Fan & Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 15" Leads with Quick Connect Terminals
  • Extended Studs Shaft End, Resilient Ring Mounting
  • HP430-0058 replaces the following brands and item numbers: GE #5KCP39GG7334 motor for Singer/Climate Control hotel and motel heat/cool units

$376.95 USD

Title
Buy Now
SKU:
7FD1024S
ID:
HM102-1S9-0006

SPECIFICATIONS

Nameplate Specifications
UPC786674010896
Output HP1/4 Hp
Frequency60 Hz
Current1.35 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage277 V
Speed1625 rpm
Phase1
Insulation ClassA
EnclosureSemi Enclosed
Ambient Temperature50 °C
CSAY
Technical Specifications

Electrical TypeElectrical Type:Permanent Split Capacitor
Poles4
MountingResilient Rings
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length3.88 in
Shaft Extension8 in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.99 in
Shaft Diameter0.500 in
