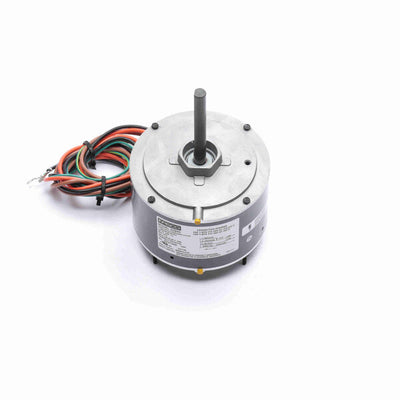

Fasco OEM Replacement Motor, 1075 RPM, 1/5 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 3 or 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads with Flag Terminal
- Extended Mounting Studs Lead End, Hex Mounting Hub Shaft End, Shell Mounting Holes
$216.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508022369 |
| Output HP | 1/5 Hp |
| Frequency | 60 Hz |
| Current | 1.16 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.74 in |
| Shaft Extension | 4.15 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Rolled Steel |
| Shaft Diameter | 0.500 in |
