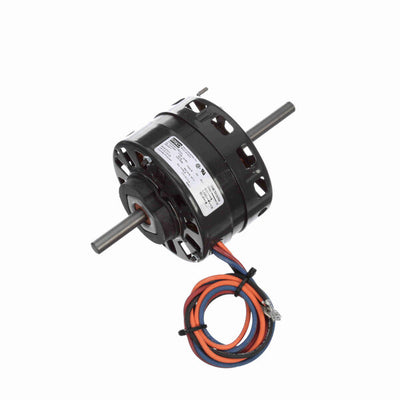

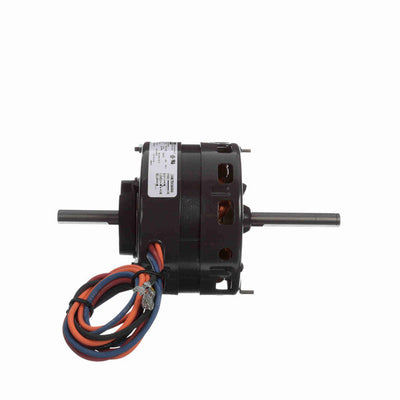

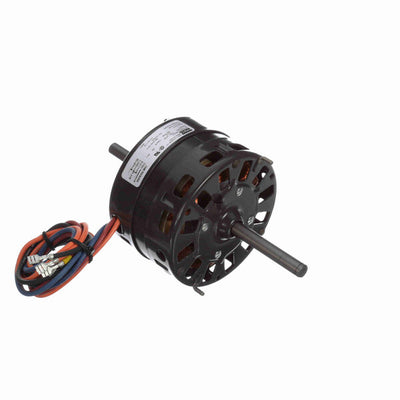

Fasco OEM Replacement Motor, 1050 RPM, 1/6-1/12-1/15 HP, 208-230 V, 42 Frame, Open Air Over

Availability:
Out-Stock
  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 25" Leads with Quick Connect Terminals
  • Extended Studs
  • HM102-0076 replaces the following brands and item numbers: Fedders models listed: #S196-42-1 and S196-161-3

$192.00 USD

Sold Out

SKU:
D1011
ID:
HM102-1S9-0076

SPECIFICATIONS

Nameplate Specifications
UPC815585027522
Output HP1/16-1/12-1/15 Hp
Frequency60 Hz
Current2.51-1.6-1.2 A
Service Factor1
Duty
Air Over
Frame42
Thermal ProtectionThermally Protected
ULRecognized
Voltage208-230 V
Speed1050 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles6
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeFlat
Shaft Extension3.33 in
RotationClockwise Shaft End
Frame MaterialNa
Overall Length
9.38 in
Shaft Diameter0.500 in
