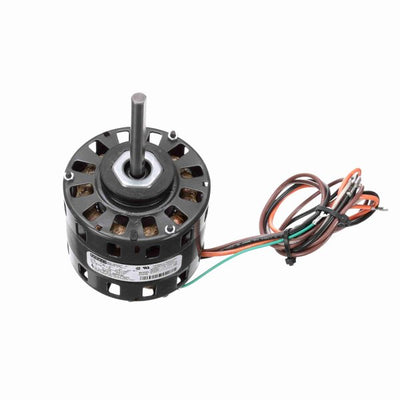

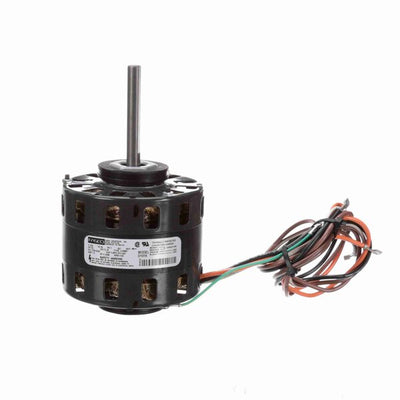

Fasco OEM Replacement Motor, 1100 RPM, 1/4 HP, 230 V, 42 Frame, Open Air Over

Availability:
Out-Stock
  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 37" Leads with Quick Connect Terminals
  • Resilient Ring Mounting
  • HM102-0068 replaces the following brands and item numbers: Fedders #S196-18-2 condenser fan motor on Fedders split system air conditioners

$368.00 USD

Sold Out

SKU:
D1016
ID:
HM102-1S9-0068

SPECIFICATIONS

Nameplate Specifications
UPC815585027539
Output HP1/4 Hp
Frequency60 Hz
Current1.6 A
Service Factor1
Duty
Continuous
Frame42
Thermal ProtectionAutomatic
ULRecognized
Voltage230 V
Speed1100 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Rings
Opp Drive End BearingSleeve
Shaft TypeFlat
Shaft Extension3.51 in
RotationClockwise Shaft End
Frame MaterialNa
Overall Length
8.67 in
Shaft Diameter0.500 in
