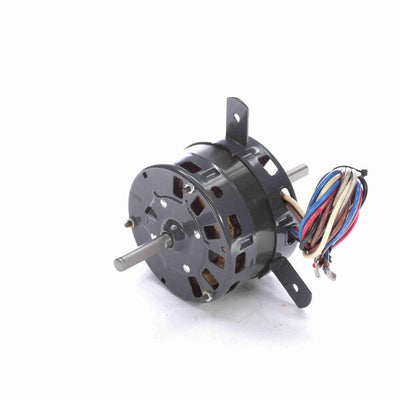

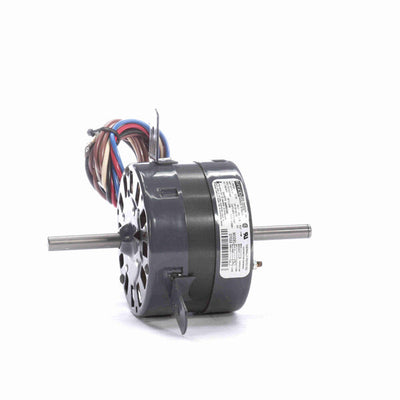

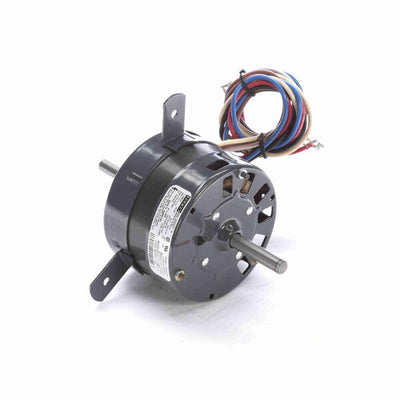

Fasco OEM Replacement Motor, 1110-1020-940 RPM,1/5-1/6-1/8 HP, 208/230 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 24" Leads with Flag Terminal
- Lug Mount
- HM102-0016 replaces the following brands and item numbers: Chrysler Airtemp #3704387, 2874493 and 2874495
$331.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585027546 |
| Output HP | 1/5-1/6-1/8 Hp |
| Frequency | 60 Hz |
| Current | 1.6-1.1-1.0 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208/230 V |
| Speed | 1110-1020-940 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Lug |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 2.375 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Na |
| Overall Length | 9.02 in |
| Shaft Diameter | 0.500 in |
