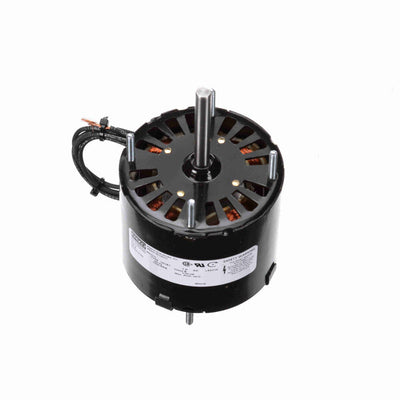

Fasco OEM Replacement Motor, 1500 RPM, 1/20 HP, 230 V, 3.3" Diameter, Open Air Over

Availability:
In-Stock
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End and Lead End

$117.00 USD

Title
Buy Now
SKU:
D188
ID:
HM102-1S9-0012

SPECIFICATIONS

Nameplate Specifications
UPC815585028871
Output HP1/20 Hp
Frequency60 Hz
Current0.90 A
Service Factor1
DutyAir Over
Frame3.3
Thermal ProtectionThermally Protected
ULRecognized
Voltage230 V
Speed1500 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles4
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length2.62 in
Shaft Extension2.30 in
RotationClockwise Shaft End
Frame MaterialSteel
Overall Length5.47 in
Shaft Diameter0.313 in
