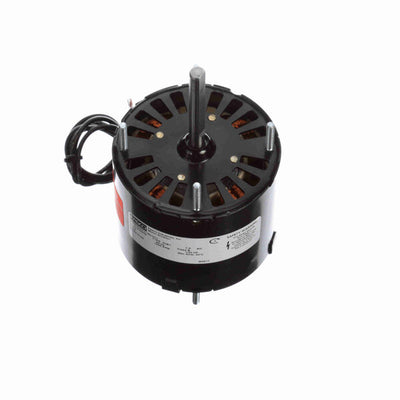

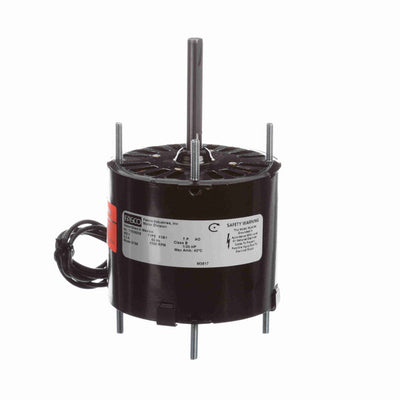

Fasco OEM Replacement Motor, 1550 RPM, 1/20 HP, 460 V, 3.3" Diameter, Open Air Over
- OEM Direct Replacement Motor
- 3.3" Diameter
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End
$188.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028864 |
| Output HP | 1/20 Hp |
| Frequency | 60 Hz |
| Current | 0.50 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | No |
| Voltage | 460 V |
| Speed | 1550 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | N |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 2.57 in |
| Shaft Extension | 2.3 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 5.42 in |
| Shaft Diameter | 0.313 in |
