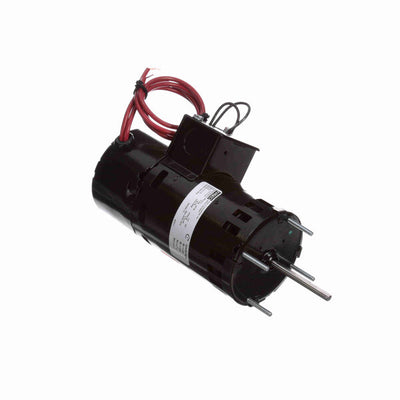

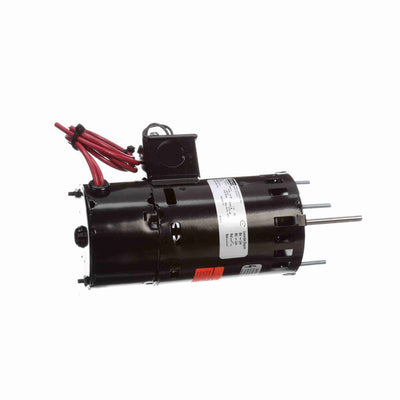

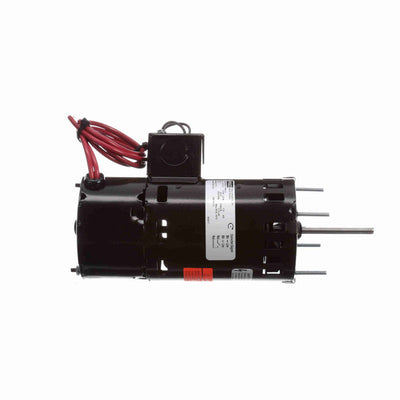

Fasco OEM Replacement Motor, 3000 RPM, 1/12 HP, 460 V, 3.3" Diameter, Open Air Over

Availability:
Out-Stock
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/4" Diameter Shaft with Flat
  • Conduit Box, 15" Switch Leads
  • Mounting Plate Shaft End
  • HM102-0069 replaces the following brands and item numbers: Carrier #HQ4AU725A and Universal #JB1P044NV

$336.00 USD

Sold Out

SKU:
D1174
ID:
HM102-1S9-0069

SPECIFICATIONS

Nameplate Specifications
UPC815585027973
Output HP1/12 Hp
Frequency60 Hz
Current0.60 A
Service Factor1
Duty
Air Over
Frame3.3
Thermal ProtectionThermally Protected
ULNo
Voltage460 V
Speed3000 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAN
Technical Specifications

Electrical TypeShaded Pole
Poles2
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length
4.52 in
Shaft Extension2.5 in
RotationClockwise Shaft End
Frame MaterialSteel
Overall Length
9.69 in
Shaft Diameter0.250 in
