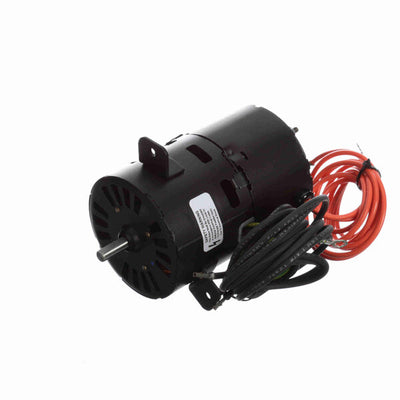

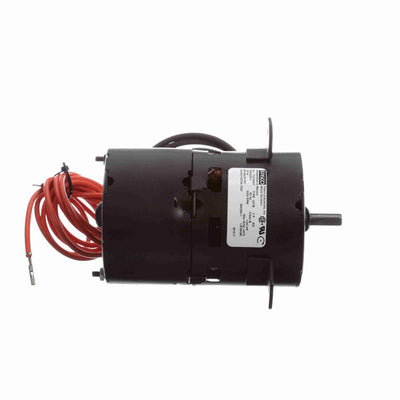

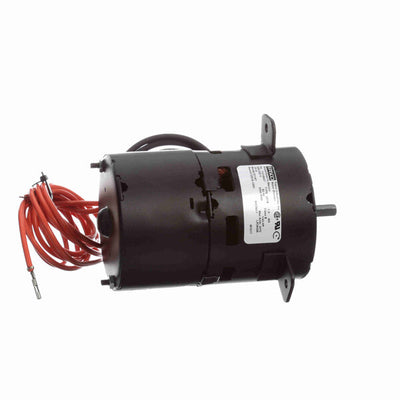

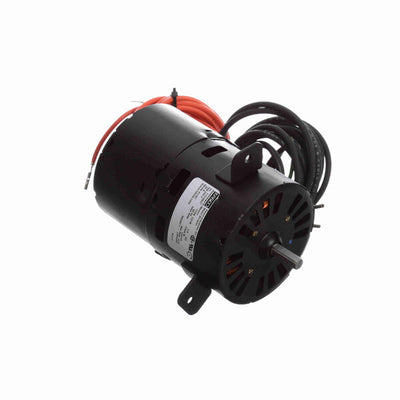

Fasco OEM Replacement Motor, 3000 RPM, 1/40 HP, 208-230V, 3.3" Diameter, Open Air Over
- OEM Direct Replacement Motor
- 3.3" Diameter
- Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Sleeve Bearing
- 5/16" Diameter Shaft with Double Flat
- 56" Leads with Socket Terminals, 18" Swithch Leads with Socket Terminals
- Lug Mount
- HM102-0073 replaces the following brands and item numbers: Shaded pole for the #1708-518, 7121-5854.Found in Singer gas furnaces.
$375.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 818508022277 |
| Output HP | 1/40 Hp |
| Frequency | 60 Hz |
| Current | 0. 55 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 3.3 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 3000 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 2 |
| Mounting | Lug |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Double Flat |
| Frame Length | 2.50 in |
| Shaft Extension | 1 in |
| Rotation | Counterclockwise Shaft End |
| Frame Material | Steel |
| Overall Length | 6.18 in |
| Shaft Diameter | 0.313 in |
