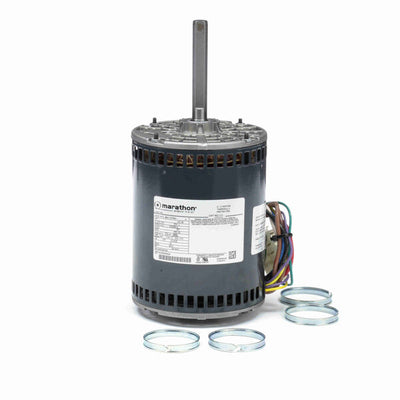

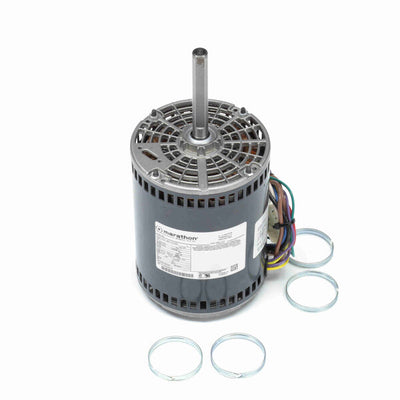

Marathon OEM Replacement Motor, 1000 RPM, 1 HP, 208-230 V, 48 Frame, Open Air Over
- Open frame and brackets
- Multi-speed model
- Grommeted lead exit, Weather resistant reversing plug
- 2-1/4” resilient ring mounting (base not included, see Accessories section)
- Resilient rings not included, see accessory section
- No thru-bolts, shaft end, 30” long leads
- Automatic reset thermal protector
- Capacitor not included, see Accessories section
- HM102-0020 replaces the following brands and item numbers: Carrier #HC52AL230, HC52AL231, HC52AL232 and HCL52S208; BDP #P251-5101 and P251-5102
$675.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856049056 |
| Output HP | 1 Hp |
| Frequency | 60 Hz |
| Current | 6.2 A |
| Service Factor | 1 |
| Duty | Continous |
| Frame | 48 |
| Thermal Protection | Automatic Lock Rotor Only |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1000 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Round Belly Band |
| Opp Drive End Bearing | Ball |
| Shaft Type | Single Special Extension |
| Frame Length | 6.75 in |
| Shaft Extension | 4.06 in |
| Rotation | Selective Clockwise |
| Frame Material | Rolled Steel |
| Overall Length | 12.25 in |
| Shaft Diameter | 0.500 in |
