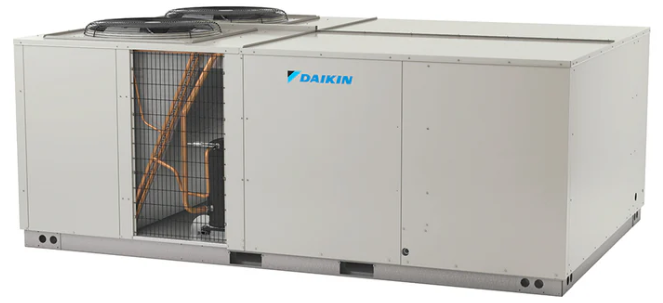

Daikin 15 Ton 14 IEER / 10.8 EER 360,000 Btu Commercial Gas Package Air Conditioner- DSG1803DM00001S
Product Overview
The Daikin DSG1803DM00001S is a 15-ton light commercial packaged gas/electric rooftop HVAC unit from Daikin’s DSG series, designed for commercial applications requiring medium-capacity gas heating alongside full-capacity electric cooling. This balanced configuration provides reliable year-round climate control while optimizing energy use for buildings with moderate heating needs.
The unit is engineered for durability and performance, featuring high-static airflow, direct-drive fan motors, and large heat transfer coils for consistent temperature control across larger or more complex duct systems. Its factory-assembled construction, pre-wired controls, and weather-resistant cabinet simplify installation and ensure long-term reliability. Typical applications include offices, retail spaces, warehouses, and light industrial facilities.
Quick Facts
- Model: DSG1803DM00001S
- System Type: Packaged gas/electric rooftop HVAC unit
- Cooling Capacity: ~15 tons (~180,000 BTU/h)
- Heating Capacity: Medium-heat configuration (~270,000 BTU input, model-dependent)
- Refrigerant: R-410A
- Efficiency: ~11 EER / ~14–15 IEER
- Voltage/Phase: 208/230 V, 3-phase
- Compressor: Scroll compressor (single or dual, model-dependent)
- Design: High-static, direct-drive packaged system
- Installation: Rooftop or ground-mounted
- Application: Commercial HVAC for offices, retail stores, warehouses, and light industrial spaces
$23,955.00 USD
SKU:
DSG1803DM00001S
ID:
HE101-2261
PRODUCT INFO
Standard Features
- High-performance, low-noise scroll compressors with stage control for efficient part-load operation
- Compressors factory-mounted on rubber grommets for vibration isolation
- High/low pressure safety switches in refrigeration circuit
- Factory-charged with low-GWP R-32 refrigerant
- Dual individually circuited scroll compressors for partial-load operation
- Crankcase heaters and external thermal overload protection for compressor durability
- Two direct-drive supply fan motors, ball-bearing EEM with thermal overload protection
- High-static airflow options for demanding duct systems
- Dynamically balanced fan assemblies for smooth, efficient operation
- Large outdoor coils with microchannel condenser and copper/aluminum evaporator; factory pressure-tested
- ETL-certified two-stage gas heating module with tubular furnace design
- Induced draft fan with flame roll-out and airflow safety switches
- Fully integrated heating control with factory-wired 24V electromechanical control package
- Single-point power entry and terminal strips for easy installation
- Draw-through filter section with standard replaceable filters
Cabinet Features
- Tool-less filter access for quick maintenance
- Fully insulated cabinet with foil-faced fiberglass to prevent heat loss and condensation
- Raised 1-inch flanges for supply and return connections
- Heavy-gauge galvanized steel base rail (≥3.5") for structural strength, rigging, and lifting
- Flexible electrical entry through base or horizontal knockout
SPECIFICATIONS
| Model Number (s) | DSG1803DM00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 15.0 Ton |
| Cooling Btu | 172,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Single |
| Electrical Phase(s) | 3-Phase |
| Refrigerant Type | R-32 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264732 |
| Amp(s) | 100 |
| Voltage | 208/230V |
| Maximum CFM | 5,000 |
| Total Shipping Weight (lbs.) | 2,025 |
| Height (Inches) | 51 11/16 |
| Length (Inches) | 133 7/8 |
| Width (Inches) | 88 1/2 |
