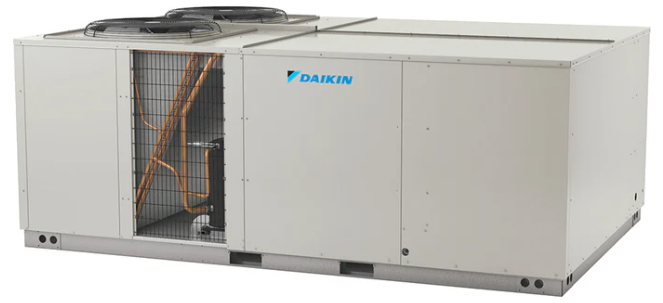

Daikin 20 Ton 14 IEER / 10.8 EER 260,000 Btu Commercial Gas Package Air Conditioner- DSG2403DL00001S
Product Overview
The Daikin DSG2403DL00001S is a 20-ton light commercial packaged gas/electric rooftop HVAC unit from Daikin’s DSG series, designed for large commercial and industrial buildings that require low-heat gas heating with full-capacity electric cooling. This configuration is ideal for facilities with moderate heating needs but high cooling demand.
Built for reliability and efficiency, the DSG2403DL00001S features high-static airflow, direct-drive fan motors, and large heat transfer coils to maintain consistent temperatures across expansive or complex duct systems. Its factory-assembled construction, pre-wired controls, and durable weather-resistant cabinet simplify installation while ensuring long-term operation. Typical applications include large offices, retail centers, warehouses, and light industrial facilities.
Quick Facts
- Model: DSG2403DL00001S
- System Type: Packaged gas/electric rooftop HVAC unit
- Cooling Capacity: ~20 tons (~240,000 BTU/h)
- Heating Capacity: Low-heat configuration (~350,000 BTU input, model-dependent)
- Refrigerant: R-410A
- Efficiency: ~11 EER / ~14–15 IEER
- Voltage/Phase: 208/230 V, 3-phase
- Compressor: Scroll compressor (single or dual, model-dependent)
- Design: High-static, direct-drive packaged system
- Installation: Rooftop or ground-mounted
- Application: Commercial HVAC for offices, retail centers, warehouses, and light industrial buildings
$25,406.00 USD
SKU:
DSG2403DL00001S
ID:
HE101-2263
PRODUCT INFO
Standard Features
- High-performance, low-noise scroll compressors with staged control for efficient part-load operation, mounted on rubber grommets for vibration isolation.
- Refrigeration circuit includes high and low pressure safety switches; factory charged with Low GWP R32 refrigerant.
- Two individually circuited single-stage compressors; located outside the condenser to prevent air bypass. Crankcase heaters and thermal overload protection included.
- Supply fans with 2 direct-drive motors; high-static options available. Each fan dynamically balanced at the factory.
- Ball-bearing direct-drive EEM motors eliminate belts and lubrication; thermal overload protection included.
- Large face-area outdoor coils with copper tubes and aluminum fins; indoor coils in draw-through configuration for better dehumidification. Microchannel condenser coils for improved performance and reduced refrigerant load.
- ETL-certified heating modules with Wrinkle Bend Technology for durability and efficient heat transfer. Two-stage heating capability for varying loads.
- Furnace with tubular in-shot gas burner, induced draft fan, flame roll-out and high-temperature limit safety switches; integrated heating control.
- Factory-wired 24V electromechanical controls with single-point power entry and terminal strips for easy installation.
- Draw-through filter section with standard off-the-shelf filters for easy maintenance.
Cabinet Features
- Tool-less filter access and fully insulated foil-faced fiberglass to prevent sweating and thermal loss.
- Raised 1-inch supply and return flanges.
- Heavy-gauge galvanized steel full perimeter base rail (≥3.5” tall) with lifting/rigging holes.
- Electrical lines can be routed through base or horizontal knockouts for field installation.
SPECIFICATIONS
| Model Number (s) | DSG2403DL00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 20.0 Ton |
| Cooling Btu | 230,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Single |
| Electrical Phase(s) | 3-Phase |
| Refrigerant Type | R-32 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264787 |
| Amp(s) | 125 |
| Voltage | 208/230V |
| Maximum CFM | 6,500 |
| Total Shipping Weight (lbs.) | 2,294 |
| Height (Inches) | 51 |
| Length (Inches) | 133 7/8 |
| Width (Inches) | 88 1/2 |
