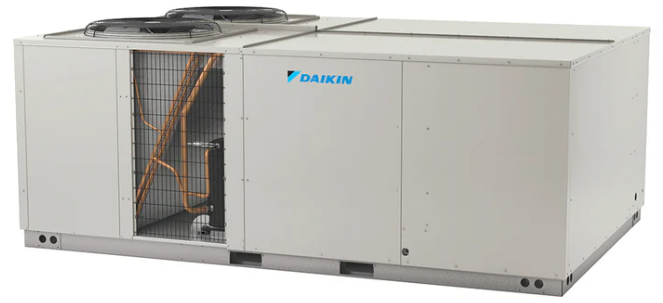

Daikin 20 Ton 14 IEER / 10.8 EER 400,000 Btu Commercial Gas Package Air Conditioner- DSG2403DH00001S
Product Overview
The Daikin DSG2403DH00001S is a 20-ton light commercial packaged gas/electric rooftop HVAC unit from Daikin’s DSG series, designed for high-capacity heating and cooling in large commercial and industrial buildings. This model features a high-heat gas configuration combined with full-capacity electric cooling, making it ideal for facilities with significant heating demands or colder climates.
Engineered for performance and durability, the DSG2403DH00001S includes high-static airflow design, direct-drive fan motors, and large heat transfer coils to provide consistent temperature control across extensive or complex duct systems. Its factory-assembled construction, pre-wired controls, and rugged weather-resistant cabinet simplify installation and support long-term reliability. Typical applications include large offices, retail centers, warehouses, and light industrial facilities requiring dependable, year-round climate control.
Quick Facts
- Model: DSG2403DH00001S
- System Type: Packaged gas/electric rooftop HVAC unit
- Cooling Capacity: ~20 tons (~240,000 BTU/h)
- Heating Capacity: High-heat configuration (~400,000+ BTU input, model-dependent)
- Refrigerant: R-410A
- Efficiency: ~11 EER / ~14–15 IEER
- Voltage/Phase: 208/230 V, 3-phase
- Compressor: Scroll compressor (single or dual, model-dependent)
- Design: High-static, direct-drive packaged system
- Installation: Rooftop or ground-mounted
- Application: Commercial HVAC for large offices, retail centers, warehouses, and light industrial buildings
$26,665.00 USD
SKU:
DSG2403DH00001S
ID:
HE101-2262
PRODUCT INFO
Standard Features
- High-performance, low-noise scroll compressors with stage control for efficient part-load operation
- Compressors mounted on rubber grommets for vibration isolation
- High/low pressure safety switches; factory-charged with low-GWP R-32 refrigerant
- Two individually-circuited scroll compressors for partial-load operation
- Crankcase heaters and external thermal overload protection for durability
- Two direct-drive supply fan motors, ball-bearing EEM, thermal overload protected
- High-static airflow options for demanding duct systems
- Dynamically balanced fan assemblies for smooth, efficient operation
- Large outdoor coils with microchannel condenser and copper/aluminum evaporator; factory pressure-tested
- ETL-certified two-stage gas heating module with tubular furnace design
- Induced draft fan with flame roll-out and airflow safety switches
- Integrated heating control with factory-wired 24V electromechanical control package
- Single-point power entry and terminal strips for easy installation
- Draw-through filter section with standard replaceable filters
Cabinet Features
- Tool-less filter access for quick maintenance
- Fully insulated cabinet with foil-faced fiberglass to prevent heat loss and condensation
- Raised 1-inch flanges for supply and return connections
- Heavy-gauge galvanized steel base rail (≥3.5") for structural strength and rigging
- Flexible electrical entry through base or horizontal knockout
SPECIFICATIONS
| Model Number (s) | DSG2403DH00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 20.0 Ton |
| Cooling Btu | 230,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Single |
| Electrical Phase(s) | 3-Phase |
| Refrigerant Type | R-32 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264770 |
| Amp(s) | 125 |
| Voltage | 208/230V |
| Maximum CFM | 6,500 |
| Total Shipping Weight (lbs.) | 2,294 |
| Height (Inches) | 51 |
| Length (Inches) | 133 7/8 |
| Width (Inches) | 88 1/2 |
