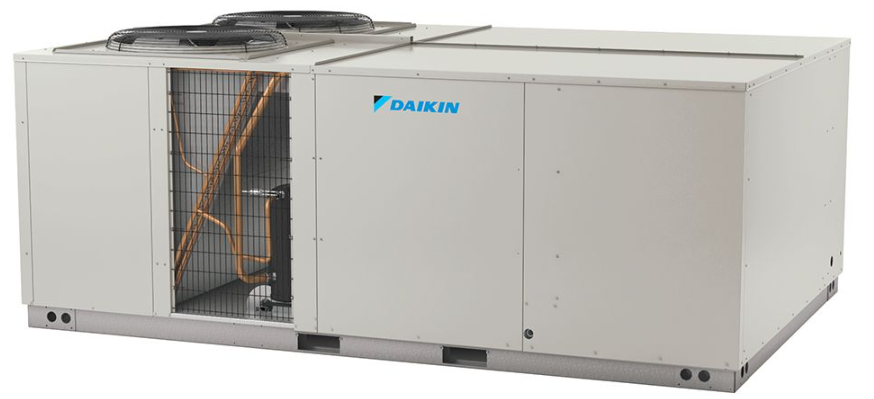

Daikin 25 Ton 13.2 IEER / 10 EER R-32 Commercial Package Air Conditioner- DSC3003D000001S
Daikin 25 Ton 13.2 IEER / 10 EER R-32 Commercial Package Air Conditioner- DSC3003D000001S
Availability:
In-Stock
Product Overview:
The Daikin DSC3003D000001S is a 25-ton (≈290,000 BTU) light commercial packaged rooftop air conditioner from the DSC series. Designed for very large commercial and industrial spaces such as warehouses, distribution centers, large retail stores, and institutional buildings, it delivers high-capacity, reliable cooling performance. This self-contained outdoor unit uses R-32 refrigerant, features dual scroll compressors for staged operation, and includes multiple condenser fans and direct-drive blowers for strong airflow and efficiency. Its heavy-duty steel cabinet is built for demanding outdoor environments and supports both rooftop and ground-mounted installations.
Quick Facts:
- Model: DSC3003D000001S
- Cooling Capacity: ~290,000 BTU / 25 tons
- Compressor: Dual scroll (staged operation)
- Refrigerant: R-32 (low GWP)
- Efficiency: ~13.2 IEER / ~10 EER
- Airflow: ~8,200 CFM nominal
- Voltage/Phase: 208–230 V / 3-Phase
- Fan System: Multiple condenser fans (≈5) for high airflow
- Installation: Rooftop or ground mount
- Durability: Heavy-duty steel cabinet for commercial outdoor use
$24,929.00 USD
SKU:
DSC3003D000001S
ID:
HE101-2225
PRODUCT INFO
Standard Features:
- High-performance scroll compressors with vibration isolation
- Dual refrigeration circuits with safety controls
- Factory-charged R-32 refrigerant (low GWP)
- Crankcase heaters and overload protection for durability
- Dual direct-drive fans (no belts) for efficient, low-maintenance operation
- Slide-out fan assemblies for easy service
- High-static airflow options available
- Draw-through coil for improved dehumidification
- Copper/aluminum coils, factory pressure-tested
- TXV, filter drier, and service ports included
- Microchannel condenser coils for enhanced efficiency
- Factory-wired controls with single-point power entry
- Standard filter section with replaceable filters
Cabinet Features:
- Fully insulated cabinet to reduce heat loss and condensation
- 1" raised supply/return flanges
- Heavy-duty galvanized steel base rails (rigging ready)
- Flexible electrical entry (base or side access)
SPECIFICATIONS
| Model Number(s) | DSC3003D000001S |
| Brand | Daikin |
| Type | Air Conditioning |
| Ton | 25.0 Ton |
| Cooling Btu | 290,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Two |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 150 |
| Maximum CFM | 8,200 |
| Refrigerant Type | R-32 |
| Height (Inches) | 51 |
| Length (Inches) | 133 7/8 |
| Width (Inches) | 88 1/2 |
| Total Shipping Weight (lbs.) | 2,244 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190263148 |
