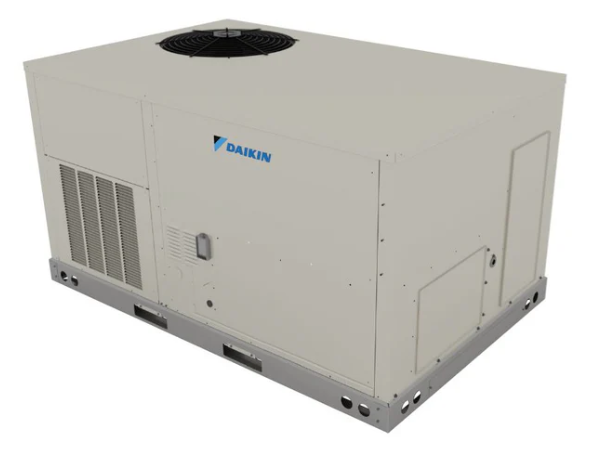

Daikin 3 Ton 14 SEER2 R-32 Commercial Package Heat Pump- DSH0361D000001S
$4,308.00 USD
SKU:
DSH0361D000001S
ID:
HE101-2267
PRODUCT INFO
Standard Features
- High-performance, low-noise scroll compressors (single-stage for 3–5 ton, 2-stage for 6 ton) with stage control and vibration-isolated rubber grommets.
- Refrigeration circuit with high/low pressure safety switches; factory-charged with eco-friendly R‑32 refrigerant.
- Compressors positioned outside condenser to prevent air bypass; internal overload protection included.
- Direct-drive airfoil SWSI Class II supply fan with aluminum blades; dynamically balanced at factory.
- Permanently lubricated EEM motors eliminate belts/sheaves/bearings; thermal overload protection included.
- Indoor draw-through coil configuration for better dehumidification; large face-area copper/aluminum coils with factory pressure testing.
- Heat pump operation with reversing valve, thermal expansion valve, and hybrid auxiliary heating option.
- Microchannel condenser coils for improved efficiency and reduced refrigerant load.
- Factory-wired 24 V electromechanical controls, single-point power entry, and terminal strips for easy installation.
- Draw-through filter section with standard off-the-shelf filters for simple maintenance.
Cabinet Features
- Tool-less filter access; fully insulated foil-faced fiberglass to prevent sweating and thermal loss.
- 1‑inch raised supply/return flanges; heavy-gauge galvanized steel perimeter base rail (≥3.5 in) with lifting/rigging holes.
- Electrical lines can enter through base or horizontal knockouts for convenient field installation.
SPECIFICATIONS
| Model Number (s) | DSH0361D000001S |
| Brand | Daikin |
| Type | Heat Pump |
| Ton | 3.0 Ton |
| Cooling Btu | 35,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Refrigerant Type | R-32 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190263568 |
| Heating Btu | 33,600 |
| Amp(s) | 40 |
| Maximum CFM | 1,220 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 606 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
