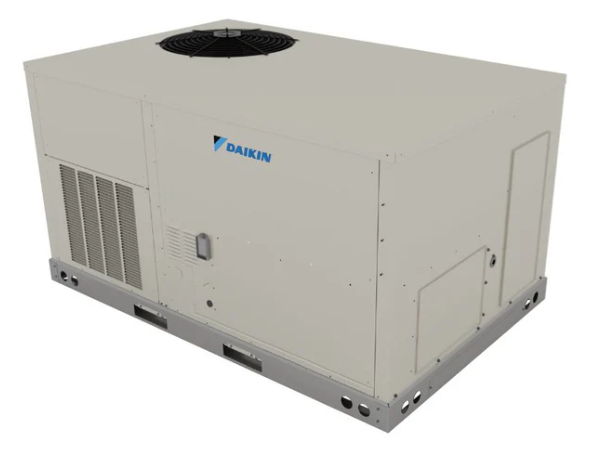

Daikin 6 Ton 16.7 IEER / 11.3 EER R-32 Commercial Package Heat Pump- DSH0723D000001S
Product Overview
The Daikin DSH0723D000001S is a 6‑ton light commercial packaged rooftop heat pump from Daikin’s DSH series. Combining efficient electric cooling with heat pump heating in a single self-contained unit, it is designed for small to mid-sized commercial spaces such as offices, retail stores, and light industrial facilities.
Built for reliable year-round comfort, the DSH0723D000001S features a scroll compressor, direct-drive supply fan, and environmentally friendly R‑32 refrigerant for high efficiency and lower environmental impact. Its factory-assembled, pre-wired galvanized steel cabinet ensures durability, simplified installation, and dependable long-term operation.
Quick Facts
- Model: DSH0723D000001S
- System Type: Light commercial rooftop packaged heat pump
- Cooling Capacity: ~6 tons (~72,000 BTU/h)
- Heating Capacity: ~66,000 BTU/h (nominal)
- Refrigerant: R‑32 (Low GWP)
- Efficiency: ~14 SEER / ~12 EER
- Voltage/Phase: 208/230 V, 1‑phase
- Compressor: Single-stage scroll
- Installation: Rooftop
- Application: Offices, retail, and light commercial spaces
$6,394.00 USD
SKU:
DSH0723D000001S
ID:
HE101-2273
PRODUCT INFO
Standard Features
- High-performance, low-noise scroll compressors with overload protection, factory-mounted on rubber grommets for vibration isolation.
- Factory-charged with eco-friendly Low GWP R‑32 refrigerant; single-stage (3–5 ton) or two-stage (6 ton) compressor.
- Compressor located outside the condenser section to prevent air bypass.
- Direct-drive airfoil supply fan (SWSI Class II) with aluminum blades and EEM motor for quiet, efficient operation and low maintenance.
- Factory-trim balanced fans with thermal overload protection; electromechanical controls modulate fan speed.
- Indoor coils in draw-through design for enhanced dehumidification; seamless copper tubes with aluminum fins.
- Outdoor coils feature microchannel heat exchanger technology; all coils pressure-tested for reliability.
- Heat pump operation with reversing valve; thermal expansion valve controls refrigerant flow.
- Optional hybrid heating for auxiliary support.
- Factory-wired 24V controls, single-point power entry, and terminal strips for easy installation.
- Draw-through filter section with standard, off-the-shelf filters for easy maintenance.
Cabinet Features
- Tool-less filter access and full insulation with foil-faced fiberglass to prevent sweating.
- 1‑inch raised flanges on supply and return; full perimeter galvanized steel base rails (≥3.5 in) for structural strength and rigging/lifting.
- Flexible electrical entry via base or horizontal knockout for easy field installation.
SPECIFICATIONS
| Model Number (s) | DSH0723D000001S |
| Brand | Daikin |
| Type | Heat Pump |
| Ton | 6.0 Ton |
| Cooling Btu | 68,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Two |
| Electrical Phase(s) | 3-Phase |
| Refrigerant Type | R-32 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190263650 |
| Heating Btu | 67,000 |
| Amp(s) | 40 |
| Maximum CFM | 2,380 |
| Heating Stage(s) | 2 |
| Total Shipping Weight (lbs.) | 715 |
| Height (Inches) | 43 1/2 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
