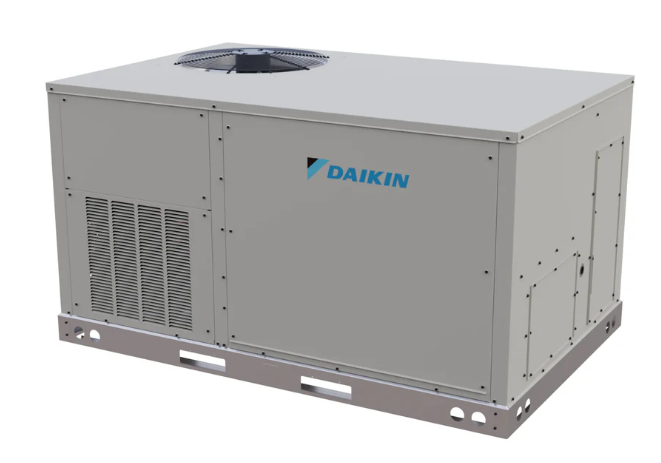

Daikin 6 Ton 18.6 IEER / 12.5 EER R-32 150,000 Btu Commercial Gas Package Air Conditioner- DHG0723DH00001S
Product Overview
The Daikin DHG0723DH00001S is a 6‑ton light commercial packaged gas/electric rooftop HVAC unit from the Daikin DHG series, designed to provide reliable year‑round heating and cooling for commercial buildings such as offices, retail spaces, schools, and warehouses. This self-contained rooftop system combines efficient electric cooling with high-capacity natural gas heating in a single cabinet, simplifying installation and saving indoor space.
It features R‑32 refrigerant, a two-stage scroll compressor, and a multi-speed ECM blower motor for energy-efficient operation and improved part-load performance. The insulated cabinet and convertible airflow design allow flexible rooftop or ground-mounted installation while maintaining quiet, dependable operation.
Quick Facts
-
Model: DHG0723DH00001S
-
Nominal Cooling Capacity: ~72,000 BTU / 6 Tons
-
Cooling Efficiency: ~16.2 SEER2 / ~12.2 EER2
-
Heating Capacity (High Heat): ~160,000 BTU input (~130,000 BTU output)
-
Thermal Efficiency: ~81% AFUE
-
Compressor: Two-Stage Scroll
-
Refrigerant: R‑32 (low GWP)
-
Voltage/Phase: 208–230 V / 3‑Phase
-
Airflow: ~1,900–2,200 CFM nominal (varies by configuration)
-
Installation: Rooftop or ground mount with convertible airflow
-
Warranty: Typically ~5-year parts / ~20-year heat exchanger (varies by region)
$6,728.00 USD
SKU:
DHG0723DH00001S
ID:
HE101-2203
PRODUCT INFO
Standard Features
High-performance, low-noise two-stage scroll compressors with vibration isolation
Factory-charged with eco-friendly R‑32 refrigerant; internal overload protection
Direct-drive ECM airfoil supply fan for quiet, efficient operation; dynamically balanced at factory
Draw-through indoor coil design with copper/aluminum construction; factory pressure-tested
Large face area outdoor coils with microchannel heat exchanger technology
ETL-certified heating modules with Wrinkle Bend Technology for improved heat transfer and durability
Integrated heating controls with induced draft fan, safety switches, and fully factory-wired 24V controls
Single-point power entry and terminal strips for easy installation
Draw-through filter section with standard replaceable filters
All 3‑Phase units: ≥81% Thermal Efficiency; 5‑ton single-phase units: 81% AFUE
Cabinet Features
Tool-less filter access for easy maintenance
Fully insulated foil-faced fiberglass cabinet prevents sweating and thermal loss
1‑inch raised flanges around supply and return
Heavy-gauge galvanized steel perimeter base rail (≥3.5 inches tall) with rigging/lifting holes
Electrical lines accessible through base or horizontal knockout for flexible installation
SPECIFICATIONS
| Model Number(s) | DHG0723DH00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 6.0 Ton |
| Cooling Btu | 69,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Two |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 40 |
| Maximum CFM | 2,100 |
| Refrigerant Type | R-32 |
| Height (Inches) | 53 3/4 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 706 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190265401 |
