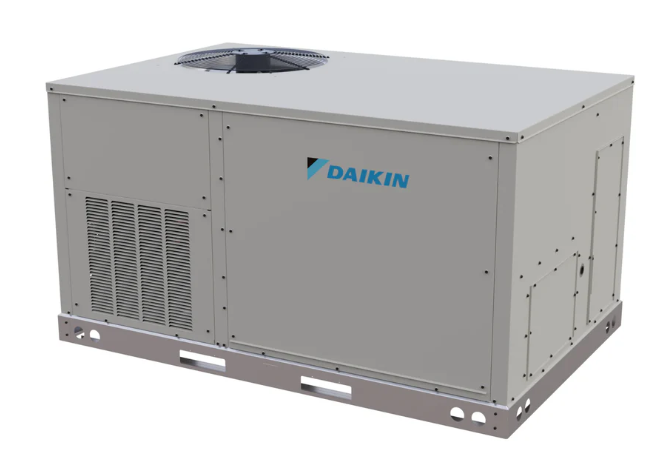

Daikin 6 Ton 18.6 IEER / 12.5 EER R-32 70,000 Btu Commercial Gas Package Air Conditioner- DHG0723DL00001S
Product Overview
The Daikin DHG0723DL00001S is a 6‑ton light commercial packaged gas/electric rooftop HVAC unit from the Daikin DHG series, engineered to deliver reliable year‑round comfort in commercial buildings such as offices, retail spaces, schools, and warehouses. This self‑contained rooftop system combines efficient electric cooling with mid‑range natural gas heating in one integrated cabinet, simplifying installation and conserving indoor space.
It features R‑32 refrigerant, a two‑stage scroll compressor, and a multi‑speed ECM blower motor for energy‑efficient performance and improved part‑load operation. The insulated cabinet and convertible airflow design allow flexible rooftop or ground‑mounted installation while maintaining quiet, dependable operation.
Quick Facts
-
Model: DHG0723DL00001S
-
Nominal Cooling Capacity: ~72,000 BTU / 6 Tons
-
Cooling Efficiency: ~16.2 SEER2 / ~12.2 EER2
-
Heating Capacity: ~120,000 BTU input (~97,000 BTU output)
-
Thermal Efficiency: ~81% AFUE
-
Compressor: Two‑Stage Scroll
-
Refrigerant: R‑32 (low GWP)
-
Voltage/Phase: 208–230 V / 3‑Phase
-
Airflow: ~2,000–2,200 CFM nominal (varies by configuration)
-
Installation: Rooftop or ground mount with convertible airflow
-
Warranty: Typically ~5‑year parts / ~20‑year heat exchanger (varies by region)
$6,496.00 USD
SKU:
DHG0723DL00001S
ID:
HE101-2204
PRODUCT INFO
Standard Features
High-performance, low-noise two-stage scroll compressors, factory-mounted on rubber grommets for vibration isolation.
Refrigeration circuit includes high/low pressure safety switches; factory charged with low-GWP R32 refrigerant.
Compressor positioned outside condenser section to prevent air bypass; includes internal overload protection.
Direct-drive ECM SWSI airfoil supply fan with aluminum blades for quiet, efficient operation; dynamically balanced at factory.
Indoor coil draw-through configuration for improved dehumidification; copper tube/aluminum fin construction; factory pressure tested.
Large face outdoor coils with microchannel heat exchangers for improved performance and reduced refrigerant load.
ETL-certified heating modules with Wrinkle Bend Technology for better heat transfer and durability; 81% AFUE / T.E. for 3-phase models.
Tubular furnace with in-shot gas burner, induced draft fan, flame rollout, and airflow safety switches for reliable, safe operation.
Integrated heating controls; factory-wired 24V electromechanical control package; single-point power entry and terminal strips for easy installation.
Draw-through filter section with standard off-the-shelf filters for easy replacement and long-lasting performance.
Cabinet Features
Tool-less filter access for easy maintenance.
Fully insulated cabinet with foil-faced fiberglass to prevent sweating and thermal loss.
1-inch raised flanges around supply and return.
Full perimeter base rail of heavy-gauge galvanized steel, 3.5” tall, with rigging/lifting holes.
Electrical lines accessible via base or horizontal knockout for simplified field installation.
SPECIFICATIONS
| Model Number(s) | DHG0723DL00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 6.0 Ton |
| Cooling Btu | 69,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Two |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 40 |
| Maximum CFM | 2,100 |
| Refrigerant Type | R-32 |
| Height (Inches) | 53 3/4 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 690 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190265418 |
