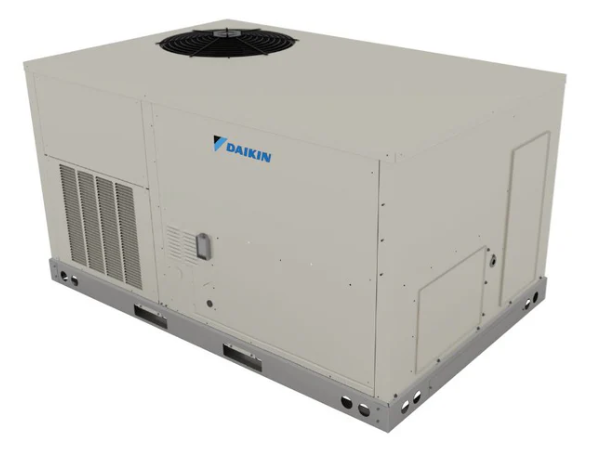

Daikin Gas/Electric Packaged Air Conditioner 17 SEER/12.8 EER, 81% AFUE, Single-Phase, 3 Ton -DRG0361DH00001S
Product Overview
The DRG0361DH00001S is a light commercial packaged rooftop HVAC system designed to deliver both heating and cooling in a single, self-contained unit. Built for commercial comfort applications, it combines efficient cooling performance with integrated gas heating, making it suitable for year-round climate control in small to mid-sized buildings such as offices, retail spaces, and light commercial facilities.
Engineered for efficiency and ease of installation, the DRG series uses a factory-assembled, pre-tested design that simplifies startup and reduces on-site labor. It supports flexible installation options and is commonly used for both new construction and replacement of existing rooftop units.
Quick Facts
- System Type: Packaged Rooftop Gas/Electric (Heating & Cooling)
- Cooling Capacity: ~3 tons (≈36,000 BTU)
- Heating Type: Natural gas furnace (integrated)
- Refrigerant: R-410A (common in DRG series platforms)
- Power Supply: 208/230V, 1-phase, 60 Hz
- Compressor Type: High-efficiency scroll compressor
- Fan System: Direct-drive ECM indoor blower
- Installation: Rooftop or curb-mounted (new or retrofit)
- Efficiency: High-efficiency commercial packaged system (SEER ~17 range typical)
- Application: Light commercial buildings (offices, retail, small facilities)
$4,991.28 USD
SKU:
ID:
HE101-2276
PRODUCT INFO
Standard Features
- High-efficiency scroll compressor for reliable heating and cooling performance
- Self-contained packaged design for simplified installation and service
- R-410A refrigerant system for efficient operation
- Direct-drive ECM supply fan for efficient, quiet airflow
- Copper tube / aluminum fin evaporator and condenser coils
- Two-stage operation for improved comfort and efficiency
- Factory-wired and tested for faster installation and reliable startup
- Convertible airflow (horizontal or downflow) for installation flexibility
- Integrated 24V control system with terminal strip wiring
- Built-in filter rack with standard 2-inch filters
- High and low pressure switches for system protection
- AHRI certified and ETL listed for verified performance and safety
Cabinet Features
- Heavy-gauge galvanized steel cabinet construction
- UV-resistant powder-coated finish for long-term durability
- Full perimeter base rail for structural strength and support
- Weather-resistant outdoor design for rooftop or ground installation
- Tool-less access panels for simplified maintenance
- Compact footprint designed for retrofit and curb compatibility
- Sloped drain pan design for improved moisture management
SPECIFICATIONS
| BtuH Cooling | 36,000 |
|---|---|
| BtuH Heating Input | 115000 |
| BtuH Heating Output | 93,200 |
| Depth | 48-5/16" |
| EER | 12.8 |
| Height | 39-7/8" |
| Min. Circuit Amps | 25.7 |
| Motor Type | Direct Drive |
| Nom. CFM | 1,200 |
| Nom. Tons | 3 |
| Phase | Single |
| Refrigerant | R-410A |
| SEER | 17.0 |
| Volts | 208/230 |
| Width | 74" |
| Wt. Lbs. | 572 |
| Shipping Weight | 591.09 |
| Shipping Width | 48.50 |
| Shipping Length | 74.50 |
| Shipping Height | 40.50 |
