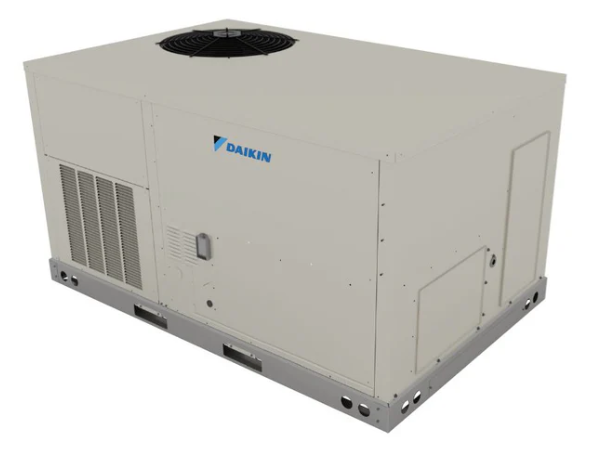

Daikin Gas/Electric Packaged Air Conditioner 17 SEER/12.8 EER, 81% AFUE, Single-Phase, 5 Ton -DRG0601DH00001S
$6,563.57 USD
SKU:
DRG0601DH00001S
ID:
HE101-2288
PRODUCT INFO
Standard Features
- High-efficiency two-stage scroll compressor for improved part-load performance and reliability
- Self-contained packaged gas/electric design for simplified installation and service
- R-410A (or R-32 in newer configurations) refrigerant for efficient operation
- Direct-drive indoor blower motor for quiet, efficient airflow
- Copper tube / aluminum fin coils for enhanced heat transfer and durability
- Factory-wired and factory-tested controls for faster startup and commissioning
- Convertible airflow (horizontal or downflow) for flexible installation
- Built-in high and low pressure switches for system protection
- Integrated 24V control system with terminal strip wiring
- High-capacity filter drier and standard filter rack (2″ filters) for system protection and maintenance
- Single-point power entry for simplified electrical connections
- Patented tubular heat exchanger with multiple gas heat configurations
- AHRI Certified and ETL Listed for verified performance and safety
Cabinet Features
- Heavy-gauge galvanized steel cabinet for long-term durability
- UV-resistant powder-coated finish for corrosion and weather protection
- Weather-resistant design suitable for rooftop or ground-level outdoor installation
- Fully insulated cabinet to reduce noise and improve efficiency
- Large service panels for easier maintenance and component access
- Built-in filter rack with standard 2″ filters for convenience
- Full perimeter base rail for structural strength and rooftop rigging support
- Sloped drain pan for proper condensate management
- Compact footprint designed for retrofit curb compatibility
SPECIFICATIONS
| BtuH Cooling | 60,000 |
|---|---|
| BtuH Heating Input | 140000 |
| BtuH Heating Output | 113,400 |
| Depth | 48-5/16" |
| EER | 12.8 |
| Height | 43-1/2" |
| Min. Circuit Amps | 43.4 |
| Motor Type | Direct Drive |
| Nom. CFM | 2,000 |
| Nom. Tons | 5 |
| Phase | Single |
| Refrigerant | R-410A |
| SEER | 17.0 |
| Volts | 208/230 |
| Width | 74" |
| Wt. Lbs. | 655 |
| Shipping Weight | 704.00 |
| Shipping Width | 48.50 |
| Shipping Length | 74.00 |
| Shipping Height | 47.00 |
