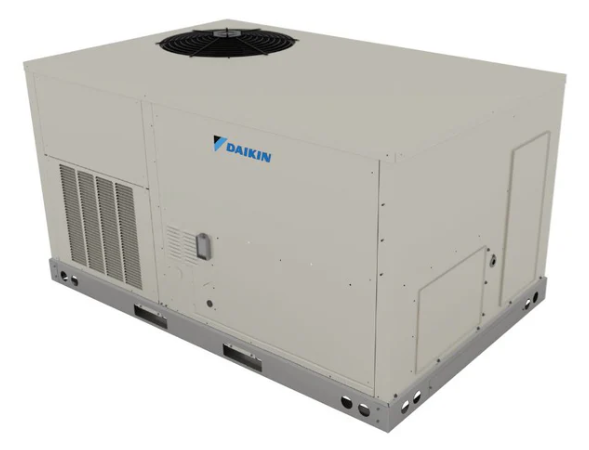

Daikin Gas/Electric Packaged Air Conditioner, Up to 17 SEER/13 EER, 81% Thermal Efficiency, 3 Phase, 6 Ton -DRG0723DM00001S
Daikin Gas/Electric Packaged Air Conditioner, Up to 17 SEER/13 EER, 81% Thermal Efficiency, 3 Phase, 6 Ton -DRG0723DM00001S
Availability:
In-Stock
Product Overview
The DRG0723DM00001S is a 6-ton light commercial packaged rooftop gas/electric HVAC system designed to deliver both high-efficiency cooling and integrated gas heating in a single self-contained unit. Built for larger commercial applications, it provides dependable year-round comfort for offices, retail centers, and other light commercial facilities.
Engineered for performance and efficiency, the system features a high-efficiency scroll compressor and a direct-drive indoor ECM blower motor to ensure consistent airflow, quiet operation, and stable temperature control. Its factory-assembled and tested design helps reduce installation time, simplify startup, and improve long-term reliability.
Designed for rooftop installation, the unit includes a rugged, weather-resistant cabinet and supports flexible airflow configurations (horizontal or downflow), making it suitable for both new construction and retrofit applications.
Quick Facts
- System Type: Packaged Rooftop Gas/Electric (Heating & Cooling)
- Cooling Capacity: 72,000 BTU (6 tons)
- Heating Capacity: Up to ~125,000 / 101,300 BTU (high/low stage, depending on configuration)
- Efficiency: ~17.1 IEER / ~12.1 EER typical range
- Compressor Type: High-efficiency scroll compressor (two-stage)
- Fan System: Direct-drive indoor blower motor
- Airflow: ~2,400 CFM nominal
- Refrigerant: R-410A (platform standard for this model line)
- Power Supply: 208/230V, 3-phase, 60 Hz
- Installation: Rooftop or curb-mounted (new or retrofit applications)
- Application: Light to mid-sized commercial buildings
- Design Focus: Energy efficiency, durability, simplified installation
$7,202.98 USD
SKU:
DRG0723DM00001S
ID:
HE101-2296
PRODUCT INFO
Standard Features
- High-efficiency two-stage scroll compressor for improved comfort and energy performance
- Self-contained packaged rooftop gas/electric design for simplified installation and service
- R-410A refrigerant system for reliable, proven operation
- Direct-drive indoor ECM blower motor for quiet airflow and reduced maintenance
- Factory-wired and factory-tested controls for faster startup and commissioning
- Convertible airflow (horizontal or downflow) for installation flexibility
- Copper tube / aluminum fin evaporator and condenser coils for durability and efficiency
- Integrated 24V control system with terminal strip wiring for simplified field connections
- Built-in high and low pressure switches for compressor protection
- Standard replaceable filter rack for easy serviceability
- Single-point power entry for simplified electrical hookup
- Draw-through coil configuration for improved airflow and dehumidification performance
Cabinet Features
- Heavy-gauge galvanized steel cabinet construction for long-term durability
- Weather-resistant, rooftop-rated enclosure designed for outdoor operation
- UV-resistant powder-coated finish for corrosion protection
- Fully insulated cabinet for reduced noise and improved thermal performance
- Large hinged access panels for easy service and component access
- Tool-less or quick-access panels to reduce maintenance time
- Rugged full-perimeter base rail for rooftop mounting and lifting support
- Sloped drain pan for proper condensate removal
- Compact footprint designed for curb compatibility and retrofit applications
SPECIFICATIONS
| AHRI Number | 206214138 |
|---|---|
| BtuH Cooling | 72,000 |
| BtuH Heating Input | 120000 |
| BtuH Heating Output | 100,000 |
| Depth | 48-5/16" |
| EER | 12 |
| Height | 53-3/4" |
| Min. Circuit Amps | 28.2 |
| Motor Type | Direct Drive |
| Nom. CFM | 2,400 |
| Nom. Tons | 6 |
| Phase | Three |
| Refrigerant | R-410A |
| SEER | 17 |
| Volts | 208/230 |
| Width | 74" |
| Wt. Lbs. | 705 |
| Shipping Weight | 763.00 |
| Shipping Width | 74.00 |
| Shipping Length | 48.31 |
| Shipping Height | 53.75 |
