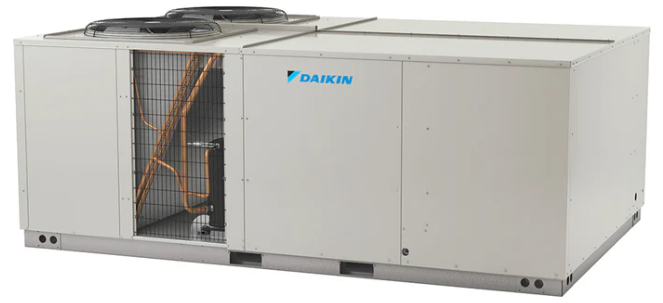

Daikin 25 Ton 13 IEER / 9.8 EER 360,000 Btu Commercial Gas Package Air Conditioner- DSG3003DM00001S
Product Overview
The Daikin DSG3003DM00001S is a 25-ton light commercial packaged gas/electric rooftop HVAC unit from Daikin’s DSG series, designed for large commercial and industrial buildings that require medium-heat gas heating with full-capacity electric cooling. This configuration is ideal for facilities with moderate heating demands and high cooling loads.
Engineered for performance and durability, the DSG3003DM00001S features high-static airflow, direct-drive fan motors, and large heat transfer coils to deliver consistent temperatures across complex or extensive duct systems. Its factory-assembled construction, pre-wired controls, and rugged, weather-resistant cabinet simplify installation and ensure long-term reliability. Typical applications include large offices, retail centers, warehouses, and light industrial facilities.
Quick Facts
- Model: DSG3003DM00001S
- System Type: Packaged gas/electric rooftop HVAC unit
- Cooling Capacity: ~25 tons (~300,000 BTU/h)
- Heating Capacity: Medium-heat configuration (~450,000 BTU input, model-dependent)
- Refrigerant: R-410A
- Efficiency: ~11 EER / ~14–15 IEER
- Voltage/Phase: 208/230 V, 3-phase
- Compressor: Scroll (single or dual)
- Design: High-static, direct-drive packaged system
- Installation: Rooftop or ground-mounted
- Application: Commercial HVAC for offices, warehouses, retail centers, and industrial buildings
$31,033.00 USD
SKU:
DSG3003DM00001S
ID:
HE101-2266
PRODUCT INFO
Standard Features
- High-performance, low-noise scroll compressors with staged control for efficient part-load operation, mounted on rubber grommets for vibration isolation.
- Refrigeration circuit with high/low pressure safety switches; factory charged with Low GWP R32 refrigerant.
- Two individually circuited single-stage compressors outside condenser to prevent air bypass; crankcase heaters and thermal overload protection included.
- Supply fans with 2 direct-drive motors; high-static options available; fans factory dynamically balanced.
- Ball-bearing direct-drive EEM motors eliminate belts/lubrication; thermal overload protection included.
- Large face-area copper/aluminum outdoor coils; indoor draw-through coils improve dehumidification; microchannel condenser coils enhance performance and reduce refrigerant load.
- ETL-certified heating modules with Wrinkle Bend Technology; two-stage heating capability.
- Furnace with tubular in-shot gas burner, induced draft fan, flame roll-out and high-temperature limit safety switches; integrated heating control.
- Factory-wired 24V electromechanical controls; single-point power entry and terminal strips for easy installation.
- Draw-through filter section with standard off-the-shelf filters for easy maintenance.
Cabinet Features
- Tool-less filter access; fully insulated foil-faced fiberglass prevents sweating and thermal loss.
- 1-inch raised supply/return flanges.
- Heavy-gauge galvanized steel full perimeter base rail (≥3.5”) with lifting/rigging holes.
- Electrical lines routed through base or horizontal knockouts for easy field installation.
SPECIFICATIONS
| Model Number (s) | DSG3003DM00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 25.0 Ton |
| Cooling Btu | 290,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Single |
| Electrical Phase(s) | 3-Phase |
| Refrigerant Type | R-32 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264855 |
| Amp(s) | 150 |
| Voltage | 208/230V |
| Maximum CFM | 8,200 |
| Total Shipping Weight (lbs.) | 2,385 |
| Height (Inches) | 51 |
| Length (Inches) | 133 7/8 |
| Width (Inches) | 88 1/2 |
