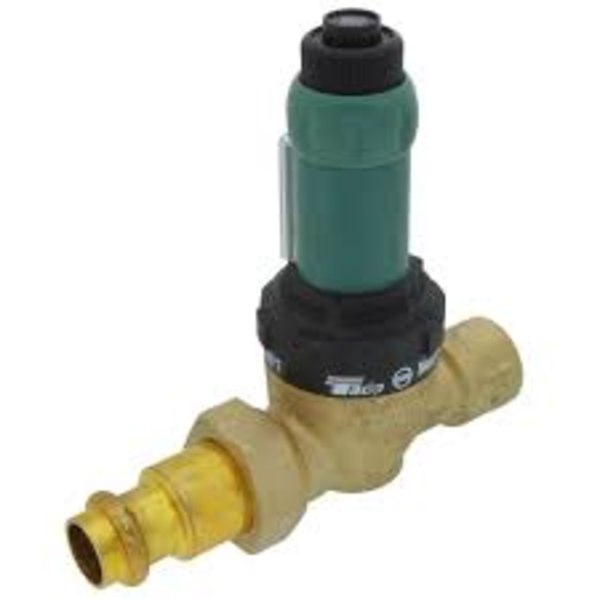

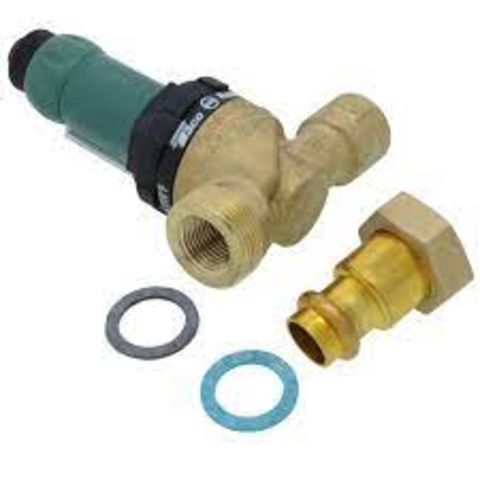

Taco 3350-H3 1/2" Union Press Cartridge Pressure Reducing Valve w/ AutoFill
The 3350-H3 valve is used to automatically feed water to a hydronic system whenever pressure in the system drops below the pressure setting of the valve.
Product Features
- 1/2" Union Press
- Automatic Pressure Reset from Fast Fill
- Easy External Dial-up Pressure Setting
- Set Pressure Indicator
- Simple serviceability with the unique one piece cartridge
- Internal check allows the cartridge to be replaced without draining the system
- Integral Strainer
- ASSE 1003
$165.50 USD
SKU:
3350-H3
ID:
TC200-2S9-0038
Categories:
SPECIFICATIONS
| Bady Type | Brass | |
| Apcatioplin | Heating | |
| Size | 1/2 | |
| Min Pressure (PSI) | 10 | |
| Max Pressure (PSI) | 50 | |
| Max Inlet Pressure | 250 (PSI) |
| Pressure Range (PSI) | 10 to 50 | |
| Outlet Type | FNPT | |
| Inlet Type | FNPT | |
| Connection Type | Union Press | |
| Max Temp | 210°F |
