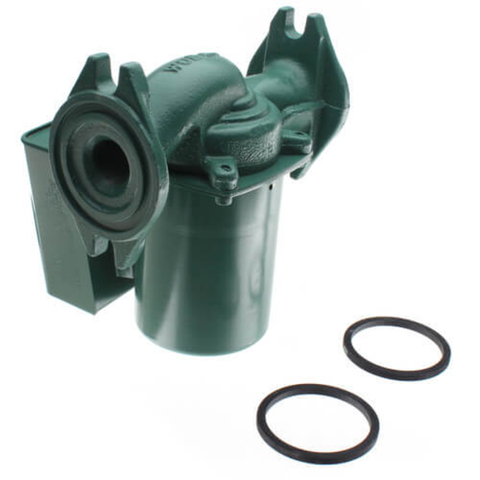

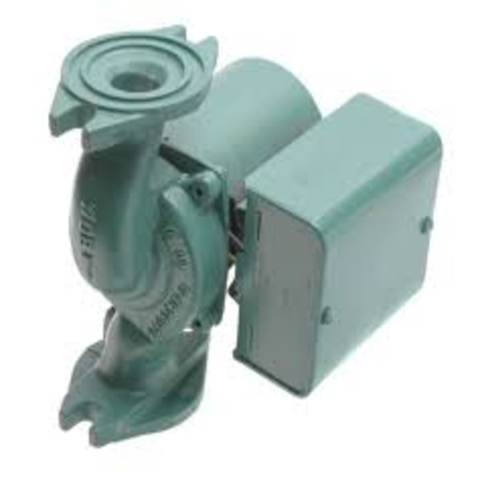

Taco 007-ZF5-9 Cast Iron Priority Zoning Circulator, 1/25 HP
Features
- Flange Type S
- Universal Thermostat Compatibility, Thermostat Ready
- Can be used in conjunction with other circulators or zone valves
- Available in a full range of sizes from 003-0014
- 00 Reliability
- Snap-In PC Board
- Low and High Voltage Strips
- Removable low-voltage terminal strip simplifies wiring installation
- LED Power Light
- UL and CSA Listed
- 100% Factory Tested
- Made in USA
Typical Applications
- Indirect Hot Water Heaters
- Adding Zones
- Zoning with Circulators
- Prioritizing Under-Sized Zones
Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 007-042RP
$556.00 USD
SKU:
007-ZF5-9
ID:
TC200-2S9-0334
Categories:
SPECIFICATIONS
| Body Type | Cast Iron | |
| Voltage | 115V | |
| Max Pressure (PSI) | 125 | |
| Horse Power | 1/25 | |
| Max Head (Ft) | 10 | |
| Phase | 1 | |
| Head Range (Ft) | 0-10 | |
| Connection Type | Flanged x Flanged | |
| Connection Size | 3/4'' 1-1/4'' 1-1/2'' 1'' |
| Application | Heating | |
| Amperage | 0.71 | |
| Type | Pump | |
| Max Flow (GPM) | 23 | |
| Hertz | 60 | |
| RPM | 3250 | |
| Flow Range (GPM) | 0-23 | |
| Temperature Range | 40°F - 240°F |
