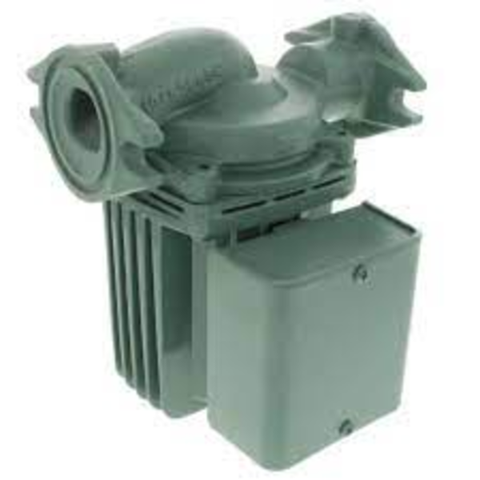

Taco 007-BF5-J Bronze Circulator with Cast Iron Casing, 1/25 HP (115V)

Availability:
In-Stock
Overview

The Taco 007 Cartridge Circulator is designed for quiet operation in a wide range of applications. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.

Product Features
  • Standard High Capacity Output Compact Design
  • Quiet, Efficient Operation
  • Unique Replaceable Cartridge Design-Field Serviceable
  • Direct Drive-Low Power Consumption
  • Self-Lubricating
  • No Mechanical Seal
  • Unmatched Reliability --Maintenance Free
  • Universal Flange-to-Flange Dimensions

$399.00 USD

Title
Buy Now
SKU:
007-BF5-J
ID:
TC200-2S9-0305

SPECIFICATIONS


Body TypeBronze

ApplicationHeating

Voltage
115V

Max Pressure (PSI)
125

Horse Power
1/25

Max Head (Ft)
10

Phase
1

Temperature Range (F)40°F - 230°F

Connection TypeFlanged x Flanged



Flow Range0-23

Amperage
0.76

Type Pump

Max Flow (GPM)23

Hertz60

RPM3250

Head Range (Ft)0-10

Connection Size3/4''
1-1/2''
1''
1-1/4''
