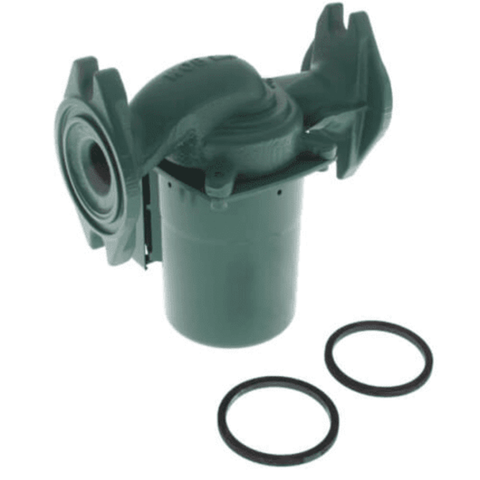

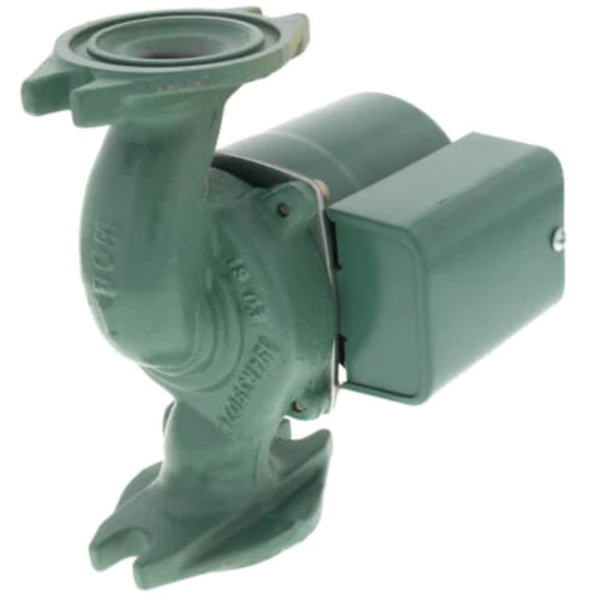

Taco 005-F2 Cast Iron Circulator, 1/35 HP
Performance Data
Flow Range: 0-18
GPM Head Range: 0-9.5 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature, Cast Iron: 230 degrees F (110 degrees C)
Maximum Fluid Temperature, Bronze: 220 degrees F (104 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
Taco 005 Cartridge Circulator is designed for a wide range of residential and light commercial water circulating applications. Unique replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Compact, direct-drive design and low-power consumption are ideal for high efficiency jobs.
Features
Standard High Capacity Output Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron or Bronze Construction
Typical Applications
Hydronic Heating
Add-A-Zone Additions
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-019RP
Flow Range: 0-18
GPM Head Range: 0-9.5 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature, Cast Iron: 230 degrees F (110 degrees C)
Maximum Fluid Temperature, Bronze: 220 degrees F (104 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
Taco 005 Cartridge Circulator is designed for a wide range of residential and light commercial water circulating applications. Unique replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Compact, direct-drive design and low-power consumption are ideal for high efficiency jobs.
Features
Standard High Capacity Output Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron or Bronze Construction
Typical Applications
Hydronic Heating
Add-A-Zone Additions
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-019RP
$330.50 USD
SKU:
005-F2
ID:
TC200-1S9-0145
Categories:
SPECIFICATIONS
| Body Tyoe | Cast Iron | |
| Amperage | 0.52 | |
| Max Pressure (PSI) | 125 | |
| Max Head (Ft) | 9 | |
| Max Flow (GPM) | 19 | |
| Flow Range (GPM) | 0-19 | |
| Head Range | 0-9 | |
| Horse Power | 1/35 | |
| Hertz | 60 | |
| RPM | 3250 |
| Application | Heating | |
| Connection Type | Flanged x Flanged | |
| Connection Size | 1-1/2'' 1'' 1-1/4'' 3/4'' | |
| Vlotage | 115V | |
| Type | Pump | |
| Temperature Range | 40°F to 230°F | |
| Phase | 1 | |
| Warranty | 3 year |
