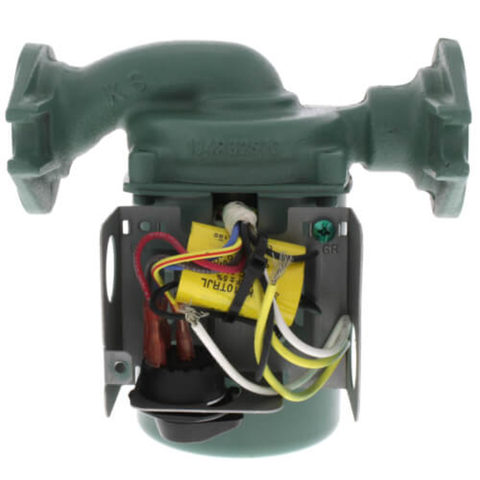

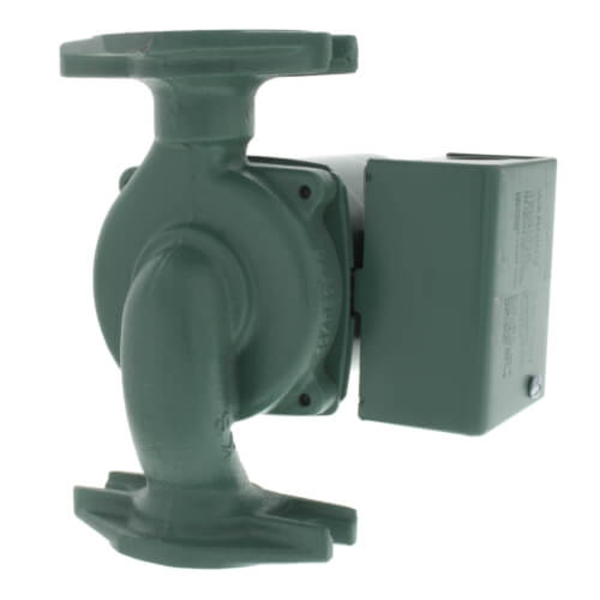

Taco 0015-MSF3-1IFC 3-Speed Cast Iron Circulator - Integral Flow Check, 1/20 HP w/ Rotated Flanges
The 0015 3-Speed pump is specifically designed for the wide range of flow and head requirements of today's hydronic heating systems. The Stainless Steel 0015 should be used on open, fresh water systems and replaces Grundfos UPS 15-35FC & 15-55FC. It's 3-Speed switching capability provides fine tuning control to match a wide combination of tube diameters and length of runs. The 0015 3-Speed is a direct replacement for the Grundfos UPS 15-58 3-Speed. The 0015 delivers the highest starting torque in its class and includes a removable, uni-body Integral Flow Check (IFC®) that prevents gravity flow, reduces installation costs and improves pump performance.
Features:
Replacement Parts List:
Casing O-Ring: 00R-001RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 0015-004RP
Cartridge Assembly Complete: 0015-002RP
Valve Assembly Trans/Relay: 0010-025RP
Features:
- 3-Speed Switch
- Fine tune to system requirements
- Highest performance & starting torque in class
- Heavy duty construction for longer life
- Removable high-flow Integral Flow Check (IFC)
- Prevents gravity flow
- Reduces installation costs
- Improves pump performance
- Replaceable cartridge design
- Quiet, efficient operation
- Self lubricating, no mechanical seal
- Wide range of applications
Replacement Parts List:
Casing O-Ring: 00R-001RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 0015-004RP
Cartridge Assembly Complete: 0015-002RP
Valve Assembly Trans/Relay: 0010-025RP
$427.00 USD
SKU:
0015-MSF3-1IFC
ID:
TC200-2S9-0118
Categories:
SPECIFICATIONS
| Body Type | Cost Iron | |
| Voltage | 115V | |
| Max Pressure (PSI) | 125 | |
| Max Head (Ft) | 17 | |
| Horse Power | 1/20 | |
| Phase | 1 | |
| Connection Type | Flanged x Flanged | |
| Connection Size | 1-1/4'' 1'' 3/4'' 1-1/2'' | |
| Amperage | 0.54 - 0.85 |
| Temperature Range | 40°F to 230°F | |
| Application | Heating | |
| Type | 3- Speed Pump | |
| Max Flow (GPM) | 18 | |
| Hertz | 60 | |
| RPM | 3250 | |
| Head Range (Ft.) | 0-17 | |
| Flow Range (GPM) | 0-18 | |
| Warranty | 3 Year |
