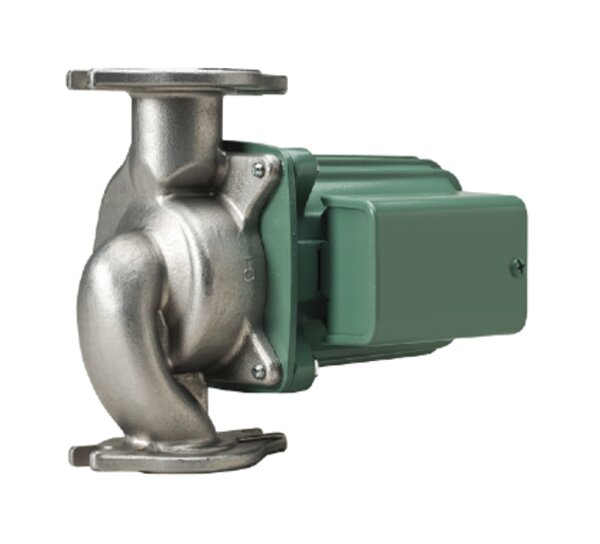

Taco 0014-SF1-IFC Stainless Steel Circulator w/ Integral Flow Check, 1/8 HP

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The 0014-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00® circulators on medium head / medium flow hydronic or radiant heating, hydro-air fan coils or closed loop solar heating systems. By locating the removable, spring-loaded IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC, increases the flow performance over in-line check valves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit. Our patented Priority Zoning circulator with built-in transformer, relay, priority switch and IFC in one complete, compact package makes it ideal for zoning.

Replacement Parts List:

• Casing O-Ring: 009-028RP
• Flange Gasket Set: 007-007RP
• Capacitor or PC Board: 009-018RP
• Cartridge Assembly Complete: 0014-003RP
• Valve Assembly Trans/Relay: 0012-021RP

Features:

• Integral Flow Check: Prevents gravity flow, Eliminates separate in-line flow check, Reduces installed cost, easy to service, Improved performance vs. In-line flow checks
• Unique replaceable cartridge-Field serviceable
• Unmatched reliability-Maintenance free
• Quiet, efficient operation
• Direct drive-Low power consumption
• Self lubricating, No mechanical seal
• Standard high capacity output-Compact design
• Wide range of applications
