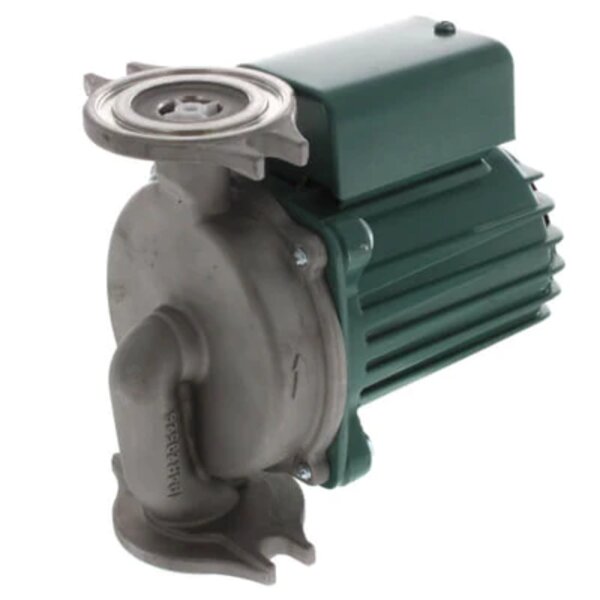

Taco 009-SF5-IFC (Flanged) Taco Stainless Steel Circulator w/ IFC, 1/8 HP

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The Taco 009-IFC with Integral Flow Check (IFC) is designed to reduce installation costs when zoning with "00" circulators on a wide range of residential and light commercial, higher-head/lower-flow water circulating applications. Typical uses include hydronic heating, radiant in-floor/panel heating and closed-loop solar heating systems.

The stainless steel 009-IFC can be used in higher-head/lower-flow heat recovery, open-loop solar heating and light commercial domestic water recirculation systems.

Features:

• Integral Flow Check (IFC)--Eliminates In-Line Flow Check, Reduces Installed Cost, Easy to Service
• Improved Performance vs. In-Line Flow Checks
• Unique Replaceable Cartridge Design, Field Serviceable
• Unmatched Reliability, Maintenance Free
• Quiet, Efficient Operation
• Direct Drive, Low Power Consumption
• Standard High Capacity Output
• Compact Design
• Self Lubricating
• No Mechanical Seal
• Stainless Construction with Flanged Connections

Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 009-022RP
Valve Addembly Trans/Relay: 009-033RP
