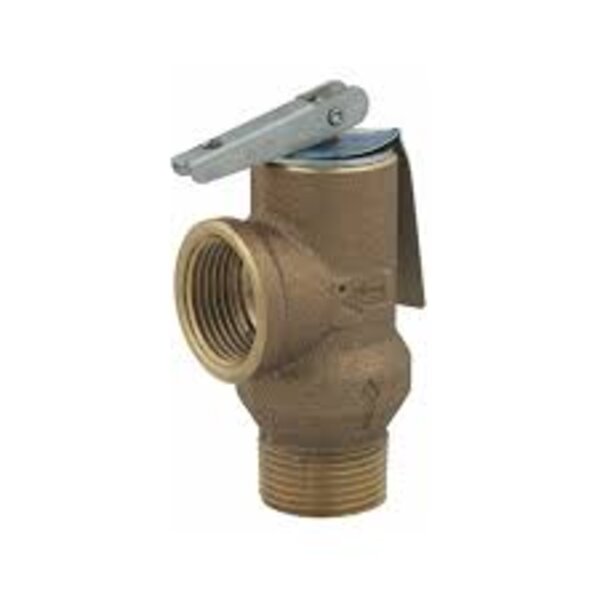

Watts 0556033 3/4" Poppet Type Pressure Relief Valve with Test Lever Side View

Watts 0011640 3/4" Poppet Type Pressure Relief Valve with Test Lever

Availability:

In-Stock

This 3/4 inch pressure relief valve is used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters
It consists of a brass body construction with NPT threaded male inlet and NPT threaded female (drain) outlet, test lever, and stainless steel spring
The pressure relief is set at 125 PSI (86 BAR)
It is ANSI Z2122 approved, ASME rated and design certified and listed by CSA

$81.90 USD

Default Title

Buy Now

Add to wishlist

SKU:

0011640

ID:

HR100-1S9-0103

Categories:

Full Port Ball Valves / PLUMBING / Relief Valves / Valves

SPECIFICATIONS

	Ball/Stem Material	Bronze
	BtuH	200,000
	Conn. Size	3/4 MIPT x 3/4" FIPT
	Inlet Conn.	3/4"
	Model #	3L-125 3/4
	Outlet Conn.	3/4"
	Pressure Setting	125
	Shipping Weight	0.45
	Shipping Weight	2.60
	Shipping Length	4.40
	Shipping Height	1.60
