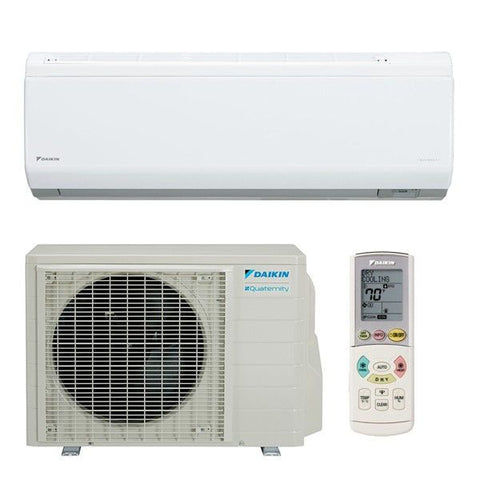

Daikin 12,000 BTU 24.2 SEER Ductless Heat Pump Wall Mounted Air Conditioning System

Availability:
In-Stock

Rated Capacity: 12,000 BTU Cooling, 16,000 BTU Heating.
Product Includes

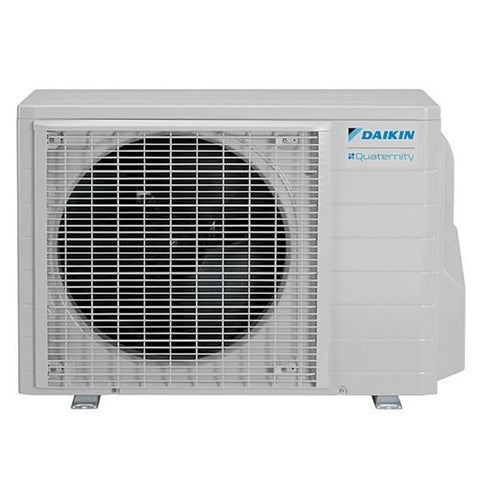

(1) Daikin - 12,000 BTU - Outdoor Condenser - Single Zone Only (RXG12HVJU)

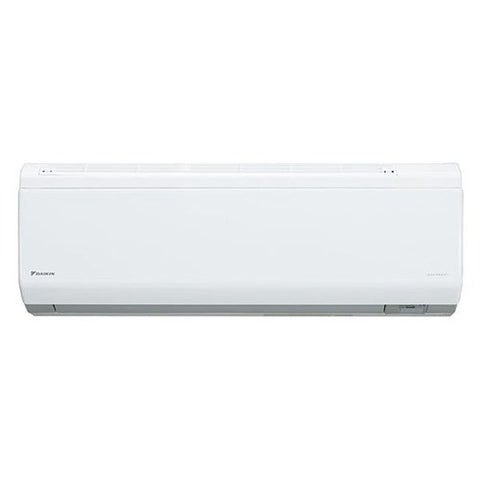

(1) Daikin 12,000 BTU Wall Mounted Unit - For Single Zone (FTXG12HVJU)

Title

PRODUCT INFO

Inverter technology is used to bring this XG12HVJU system's SEER rating up to an astounding 24.2, among the highest on the market for a system of this size. "Flash Streamer Technology" brings an effective four stage filtration system to the air in your home, almost entirely eliminating airborne debris and pathogens. A more accurate dehumidification system and "Intelligent Eye" motion sensing technology makes the XG12HVJU worthy of a spot in any efficient home.

This product requires the following accessories for installation:

  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris. Adding these accessories to your order will provide a complete, ready-to-install mini split system.

SPECIFICATIONS



General Information
TypeWall Mounted
Operating ModeHeating and Cooling
Number of Zones1
Refrigerant TypeR-410A
Indoor Unit Size(s)12
DOE Regional ComplianceNationwide
Line Set Size1/4" x 3/8"


Performance
Cooling BTU12000
Cooling Capacity12000 BTU
Heating Capacity16000 BTU
SEER24.2
HSPF10.5
Low Ambient HeatingYes
Minimum Outdoor Temperature for Heating-4 F
Minimum Outdoor Temperature for Cooling14 F


Certifications
ETL ListedYes
AHRI CertifiedYes


Dimensions
Product Weight130 Pounds
Shipping Weight134 Pounds
