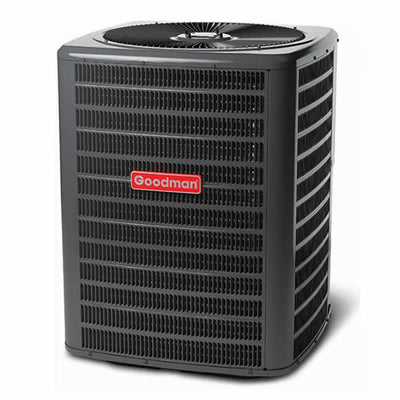

Goodman 1.5 Ton Air Conditioner Condenser; 14 SEER; Single-Stage; W/R410A Refrigerant

Availability:
In-Stock
SEER: 14; EER: 12.2; Nom. Tons: 1,5 BtuH Cooling: 18,000; Volts: 208/230; Phase: Single; Motor Type: ECM; Min. Circuit Amps: 12.0; Max. Fuse Size: 20; Liquid Conn.: 3/8"; Suction Fitting: 3/4"; Refrigerant: R410A; Width: 26"; Height: 27-1/2"; Depth: 26"; Wt. Lbs.: 131
Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

Standard Features

  • Energy-efficient compressor
  • Single-speed condenser fan motor
  • Factory-installed filter drier
  • Copper tube/aluminum fin coil
  • Service valves with sweat connections and easy-access gauge ports
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified; ETL Listed

Cabinet Features

  • Heavy-gauge galvanized-steel cabinet with a louvered sound control top
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2017 Florida
  • Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

SPECIFICATIONS

Capacities
Nominal Cooling (BTU/h)18,000
SEER / EER14 /12.2
Decibels71



Compressor
RLA9.0
LRA47.5
TypeScroll



Condenser Fan Motor
Horsepower1/8
FLA0.7



Refrigeration System
Refrigerant Line Size
     Liquid Line Size (O.D.)3/8"
     Suction Line Size (O.D.)3/4"
Refrigerant Connection Size
     Liquid Valve Size (O.D.)3/8"
     Suction Valve Size (O.D.)3/4"
Valve TypeSweat
Refrigerant Charge68
Included piston:0.053



Ship Weight (lbs)146
