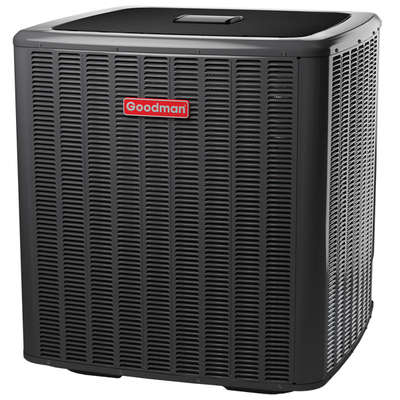

Goodman 2 Ton Air Conditioner Condenser; 16 SEER; Two-Stage; W/R410A Refrigerant

Availability:
In-Stock
SEER: 16; EER: 12.2; Nom. Tons: 2; BtuH Cooling: 24,000; Volts: 208/230; Phase: Single; Motor Type: ECM; Min. Circuit Amps: 13.6; Max. Fuse Size: 20; Liquid Conn.: 3/8"; Suction Fitting: 3/4"; Refrigerant: R410A; Width: 29"; Height: 32-1/2"; Depth: 29"; Wt. Lbs.: 180;
Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

Standard Features

  • High-efficiency two-stage scroll compressor
  • Two-speed PSC condenser fan motor
  • Integrated communicating ComfortBridge™ Technology
  • Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
  • Factory-installed filter drier
  • Factory-installed transformer
  • Factory-installed high and low-pressure switches
  • High-density foam compressor sound blanket
  • Copeland® ComfortAlert™ built in diagnostics
  • Factory-installed sensors monitoring coil and ambient temperature
  • Contactor with lug connection
  • In communicating mode, only two low voltage wires to the outdoor unit are required
  • AHRI Certified - ETL Listed
  • Ground lug connection
  • Color-coded terminal strip for non-communicating set-up
  • Copper tube & enhanced aluminum fin coil
  • Customized control algorithms

Cabinet Features

  • Heavy-gauge galvanized steel cabinet and louvered coil guards
  • Service valves with sweat connections and easy-access gauge ports
  • Engineered sound control top design
  • Wire fan discharge grille
  • Baked-on powder-paint finish with 500-hour salt-spray approval
  • Single-panel access to controls with space for field-installed accessories
  • Service port and controls are accessible while unit is operating
  • Compact footprint
  • Rust-resistant screws
  • When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

SPECIFICATIONS

Capacities
Nominal Cooling (BTU/h)24,000
Decibels71/70


Compressor
RLA10.0
LRA62.9


Condenser Fan Motor
Horsepower1/6
FLA1/1



Refrigeration System
Refrigerant Line Size
     Liquid Line Size (O.D.)3/8"
     Suction Line Size (O.D.)3/4"
Refrigerant Connection Size
     Liquid Valve Size (O.D.)3/8"
     Suction Valve Size (O.D.)3/4"
Valve TypeSweat
Refrigerant Charge92



Ship Weight (lbs)197
