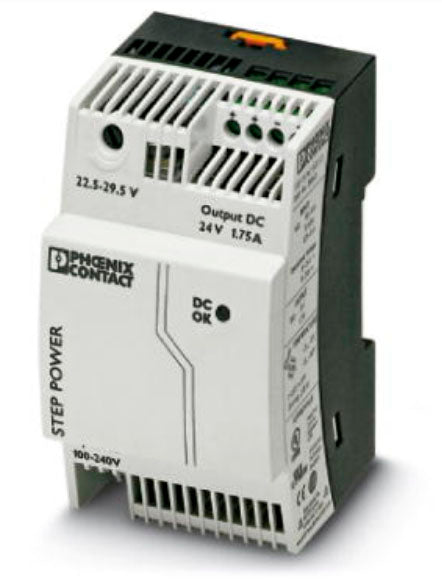

24V DIN Rail Power Supply

Availability:
Out-Stock
The new STEP POWER generation of compact power supply units is particularly suitable for installation distributors and flat control panels thanks to its design. The power supply units are available with 24 V DC output voltage in four performance classes and widths and with the special voltages 5, 12, 15 and 48 V DC. Their high degree of efficiency and the low standby losses make for high power efficiency.

$10,000.00 USD

Sold Out

SPECIFICATIONS

Technical data

Input data
Nominal input voltage100 V AC ... 240 V AC
AC input voltage range85 V AC ... 264 V AC
DC input voltage range95 V DC ... 250 V DC
AC frequency range45 Hz ... 65 Hz
DC frequency range 0 Hz
Current consumption Approx. 0.6 A (120 V AC);
Approx. 0.3 A (230 V AC)
Inrush surge current < 15 A (typical)
Power failure bypass> 25 ms (120 V AC);
> 150 ms (230 V AC)
Input fuse3.15 A (slow-blow, internal)
Permissible backup fuse 6 A (characteristic B);
10 A (characteristic B);
16 A (characteristic B)
Name of protectionTransient surge protection
Protective circuit/componentVaristor



Output data
Nominal output voltage24 V DC ±1%
Setting range of the output
voltage
22.5 V DC ... 29.5 V DC (> 24 V constant capacity)
Output current1.75 A (-25°C ... 55°C);
1.9 A (-25 °C ... 40 °C permanent);
 3.75 A (maximum output current)
DeratingFrom +55°C to 70°C: 2.5% per Kelvin
Connection in parallelYes, for redundancy and increased capacity
Connection in series Yes
Control deviation< 1 % (change in load, static 10% ... 90%);
< 2 % (change in load, dynamic 10% ... 90%);
 < 0.1 % (change in input voltage ±10%)
Residual ripple< 35 mVPP (with nominal values)
Peak switching voltages nominal load< 35 mVPP (with nominal values)
Maximum power dissipation
idling
< 0.7 W
Power loss nominal load max. 5 W
