WebRelay-10/ Industrial Grade Remote Relay Control

Availability:
Out-Stock
WebRelay-10 provides remote relay control to 10 industrial-grade, high-power relays

$10,000.00 USD

Sold Out

SKU:
X-WR-10R12-I

PRODUCT INFO

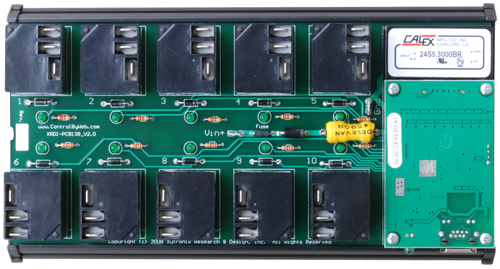

WebRelay-10™ is a robust, industrial relay board with Ethernet communications. It provides remote relay control through its ten large 15A relays.
The relays can be individually controlled using a standard web browser or by sending commands from a custom control application. It is self-contained with a built-in web server, and requires no external software, additional network modules, or computers.
WebRelay-10 is designed for industrial applications and can be DIN-Rail mounted inside a control cabinet. Tab connectors (1/4 inch) are used for power and relay contact connection.

Features:

WebRelay-10

  • Ten independent 15A Relays - SPDT (Form C).
  • Built-in web server for browser-based setup and control.
  • No special software or device drivers required.
  • XML status and control page make communications with custom computer applications simple.
  • Can operate as a Modbus/TCP slave.
  • On/Off and Pulse modes.
  • DIN-Rail mountable.
  • LEDs indicate the current relay state.
  • 1/4-inch tab-connectors.
  • Power Supply: 9-28 VDC.
  • UL/CUL listed relays (E197852).

WebRelay-10 Part Numbers:

         X-WR-10R12-I
OUTPUTS: 10 Relays (15A 277VAC, 30VDC)
INPUTS: N/A
POWER SUPPLY: 9-28VDC

Electromagnetic Compliance:

  • IEC CISPR 22, CISPR 24
  • FCC 47CFR15 (Class B)
  • EN55024 ITE Immunity (2010)
  • EN55022 Emissions (2010)

Product Safety Compliance:

  • IEC 61010-1

SPECIFICATIONS

Relay Contacts

Number of Relays
10
Max Voltage
277VAC, 30VDC
Max Current
15A
Contact Type
SPDT (Form C)
Load Type
General Purpose
Contact Resistance
< 30 milliohms initial
Contact Material
AgSnO2
Electrical Life
100K cycles (Typical)
Mechanical Life
10M cycles (Typical)
Environmental Rating
Over voltage Category II, Pollution Degree 2
Relay Modes
ON/OFF or Pulse
Pulse Timer Duration
0.1 to 86,400 Seconds (1-day)
Relay Connections
1/4" Tab Terminals



Network

Type10/100 Base-T Ethernet Port
SetupStatic IP address assignment or DHCP, HTTP port selectable
Connectors

Power, Outputs, and Inputs5-Position, 3.81mm terminal spacing, Removable. For 16-28 AWG wire
Network8-pin RJ-45
LED Indicators

Number of LEDs

13 (Power on; Relay coil energized 1-10; Network linked; Network activity)

Power Requirements
Voltage9-28VDC
Max Current 477mA - 1391mA



Physical
Size

9.125in (232mm) wide
4.25in (126mm) tall
2.425in (62mm) deep

Weight1.3 lb
Enclosure MaterialPVC
Enclosure Flame RatingUL94 V1
Operating Temperature
-40°F to 150°F (-40°C to 65.5°C)



Logging
Log File Size512K max 17900 logs
StorageNonvolatile Flash
Buffer ArchitectureCircular Buffer


Password Settings
Password protection on setup page
Yes
Password protection on control page
Optional
Password Encoding
Base 64
Password Length10 Characters
ProtocolsHTTP, XML, Modbus TCP/IP, SNMP, SMTP, Remote Services, and Remote Monitoring
