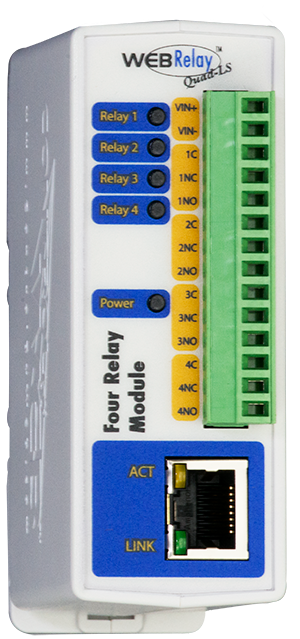

WebRelay-Quad | Remote Relay Control
Remote relay control is made easy with WebRelay-Quad. The WebRelay-Quad comes with 4 controllable relays.
$10,000.00 USD
SKU:
X-WR-4R3-I, X-WR-4R3-E
Categories:
PRODUCT INFO
For many applications, WebRelay-Quad™ is the fastest, easiest, least expensive, and most reliable way to remotely control equipment over an IP network (including the Internet)!
WebRelay-Quad™ is used by many different companies for hundreds of applications including industrial control, security, remote control, remote reset, and many other applications that require remote relay control. It has four low-signal relays that can individually switch up to 3 Amp at 28V. Each relay can be turned on, off, or pulsed remotely using the built-in web pages or by running custom scripts from a computer or dedicated controller. It is extremely versatile and can be made to fit almost any remote relay control application.
The WebRelay-Quad is fully configured in minutes using a web browser. No additional software is needed.
Features:
- Built-in web server for setup and remote relay control from a web-browser
- No special software or device drivers required
- XML status and control page makes communications with custom software interfaces simple
- Can operate as a Modbus/TCP slave device
- Four independent, 28VAC, 24VDC, 3A relays SPDT (Form C)
- ON/OFF or Pulse relay modes
- Rugged, compact enclosure can be DIN-Rail or Wall mounted
- Includes a 2-piece (14-pin) industrial terminal connector that makes connections convenient
- Power supply options: 9-28VDC; POE Class 1 (0.44 to 3.84 Watt) or 5V±5%
Applications:
WebRelay-Quad™ provides reliable remote relay control over any IP network. WebRelay-Quad, can provide remote relay control in a variety of applications including pump and motor control, and lighting control.
WebRelay-Quad's powerful and flexible design make imagination its only limit.
- Control devices such as: Pumps; Valves; Motors; Coils
- Turn lights on/off while using IP video cameras.
- Remotely control security gates
- Control electronic door locks and garage door openers.
WebRelay-Quad Part Numbers:
1. X-WR-4R3-I
OUTPUTS: 4 Relays (3A 28VAC, 24VDC)
INPUTS: N/A
POWER SUPPLY: 9-28VDC
2. X-WR-4R3-E
OUTPUTS: 4 Relays (3A 28VAC, 24VDC)
INPUTS: N/A
POWER SUPPLY: POE Class 1 (0.44 to 3.84 Watt) or 5V±5%
Electromagnetic Compliance:
- IEC CISPR 22, CISPR 24
- EU EN55024, EN55022
- X-WR-4R3-I: FCC 47CFR15 (Class B)
- X-WR-4R3-E: FCC 47CFR15 (Class A)
Product Safety Compliance:
- IEC 61010-1
SPECIFICATIONS
| Relay Contacts | |
| Number of Relays | 4 |
| Max Voltage | 28VAC, 24VDC |
| Max Current | 3A |
| Contact Type | SPDT (Form C) |
| Load Type | General Purpose |
| Contact Resistance | < 50 milliohms initial |
| Contact Material | AgSnO2 |
| Electrical Life | 100K cycles (Typical) |
| Mechanical Life | 10M cycles (Typical) |
| Environmental Rating | Over voltage Category II, Pollution Degree 2 |
| Relay Modes | ON/OFF or Pulse |
| Pulse Timer Duration | 0.1 to 86,400 Seconds (1-day) |
| Network | |
| Type | 10/100 Base-T Ethernet Port |
| Setup | Static IP address assignment. TCP port selectable |
| Connectors | |
| Power, Outputs, and Inputs | 14-Position, 3.81mm terminal spacing, Removable. For 16-28 AWG wire. |
| Network | 8-pin RJ-45 |
| LED Indicators | |
| Number of LEDs | 7 (Power on; Relay coil energized 1-4; Network linked; Network activity) |
| Power Requirements | |
| Voltage | X-WR-4R3-I: 9-28VDC X-WR-4R3-E: POE Class 1 (0.44 to 3.84 Watt) or 5V±5% |
| Max Current | X-WR-4R3-I: 320mA Max X-WR-4R3-E: 477mA Max |
| Physical | |
| Operating Temperature | -40°F to 150°F (-40°C to 65.5°C) |
| Size | 1.41in (35.7mm) wide; 3.88in (98.5mm) tall; 3.1in (78mm) deep (not including connector) |
| Weight | 0.31 lb |
| Enclosure Material | Lexan 940 Polycarbonate Plastic |
| Enclosure Flame Rating | UL94 V0 |
| Password Settings | |
| Password protection on setup page | Yes |
| Password protection on control page | Optional |
| Password Encoding | Base 64 |
| Password Length | 10 Characters |
| Protocols | HTTP, XML, Modbus TCP/IP |
