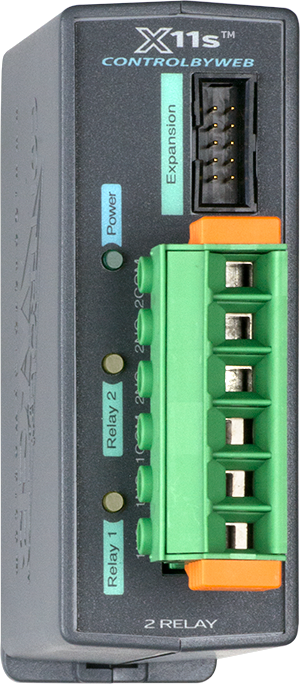

X-11s | High Current Relay Expansion Module

The X-11s 2-relay expansion module is used with an X-400 or X-600M controller. The X-11s has two high-current relays. Both relays have Form-C contacts (SPDT). A rugged, high-current connector provides connections to the relays.
One or more X-11s expansion modules can be connected to an X-600M control module with a ribbon cable. The ribbon cable provides both power and communications to this and other expansion modules.
The X-400 or X-600M with its expansion modules such as the X-11s provides an easy, flexible, and reliable way to monitor and control systems and devices over a network. It is suitable for use with loads which require line voltages and high currents such as pumps, motors, lights and heaters.
Other expansion modules with different I/O combinations are also available.

 Features:

• Two, large SPDT relays (independently controlled)

1. Voltage: 277VAC, 110VDC (NO contact), 30VDC (NC contact)
2. Current: 20A

• Removable locking connector supports 24AWG to 10AWG wire
• LED indicators for power and relay status
• Removable terminal connector
• Powered through expansion bus - no separate power supply connections are required
• Great for applications including:

1. Lighting control
2. Door locks
3. Remote gate control
4. Motor control
5. Pumps
6. and much more...

        X-11s Part Number:

       X-11s
OUTPUTS: 2 Relays (20A 277VAC, 110VDC (NO contact), 30VDC (NC contact))
INPUTS: N/A
POWER SUPPLY: 9-28 VDC (supplied via the X-400 or X-600M controller, 24V recommended)

Electromagnetic Compliance:

• IEC CISPR 22, CISPR 24
• FCC 47CFR15 (Class B)
• EN55024 ITE Immunity (2010)
• EN55022 Emissions (2010)

Product Safety Compliance:

• UL 61010-1 (Electrical Equipment for Measurement, Control, and Laboratory Use)
