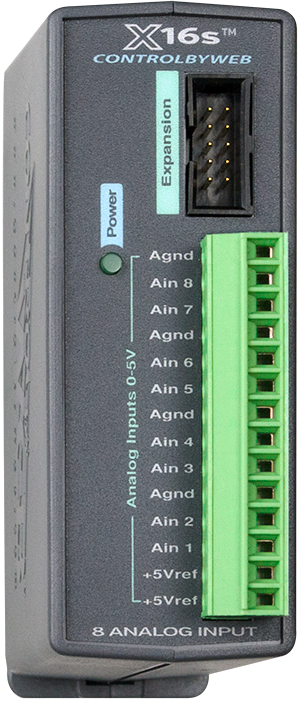

X-16s | Eight Analog Input Expansion Module
X-16s Eight Analog Input expansion module can be monitored over the internet with an X-400 or X-600M controller.
$10,000.00 USD
SKU:
X-16s
Categories:
PRODUCT INFO
The X-16s has eight, 0-5V, precision analog inputs and is an expansion module for an X-400 or X-600M controller. The X-16s employs a 24-bit A/D converter and can make both single or differential input measurements. A 5.0V reference output can be used to power potentiometers or other resistance sensing sensors. The X-16s is ideal for measuring precision analog voltages in industrial environments.
One or more X-16s expansion modules can be connected to an X-400 or X-600M controller with a ribbon cable. The ribbon cable provides both power and communications to the expansion modules.
Other expansion modules with different I/O combinations are also available.
Features:
- Eight, 0-5V precision analog inputs
- Removable terminal connector
- Powered through expansion bus - no separate power supply connections are required
- Great for monitoring applications including:
- Temperature
- Electrical Current
- Pressure
- Fluid Levels
- and much more...
X-16s Part Numbers:
X-16s
OUTPUTS: N/A
INPUTS: Analog: 8 (-0.1V (min), 5.1V (max), all channels)
POWER SUPPLY: 9-28 VDC (supplied via the X-400 or X-600M controller, 24V recommended)
Electromagnetic Compliance:
- IEC CISPR 22, CISPR 24
- FCC 47CFR15 (Class B)
- EN55024 ITE Immunity (2010)
- EN55022 Emissions (2010)
Product Safety Compliance:
- IEC 61010-1
SPECIFICATIONS
| Analog Inputs | |
| Number of Inputs | 8 |
| Type | 8 single-ended, 4-differential, or a combination |
| Input Range | -0.1V (min), 5.1V (max), all channels |
| Resolution | 10μV (24 bit ΣΔ ADC) |
| Reference | 5.00V, 0.04%, 3ppm/C, 50mA Max |
| Connectors | |
| Inputs | 14-Position, 3.81mm terminal spacing, Removable. For 16-28 AWG wire |
| Expansion Connector | Ribbon cable, 10-conductor, polarized, 2x5-position, 0.100" pitch. Provides power and communications for expansion modules (Communications: RS-485) |
| LED Indicators | |
| Number of LEDs | 1 (Power on) |
| Power Requirements | |
| Voltage | 9-28 VDC (supplied via the X-400 or X-600M controller, 24V recommended) |
| Max Current | See table below for typical values at 25°C. |
| Power Supply | Current |
| 9 VDC | 40 mA |
| 12 VDC | 30 mA |
| 24 VDC | 18 mA |
| Physical | |
| Size | 1.41in (35.7mm) wide |
| Weight | 0.3 lb |
| Enclosure Material | Lexan 940 Polycarbonate Plastic |
| Enclosure Flame Rating | UL94 V0 |
| Environmental | |
| Operating Temperature | -40°F to 150°F (-40°C to 65.5°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Humidity | 5-95%, non-condensing |
| Altitude | Up to 2,000m |
| Indoor use or NEMA-4 protected location | |
