X-18s | 10 High-Current Relay Expansion Module
The X-18s expansion module has 10 high-current relays which can be controlled using an X-400 or X-600M controller.
$10,000.00 USD
SKU:
X-18s
Categories:
PRODUCT INFO

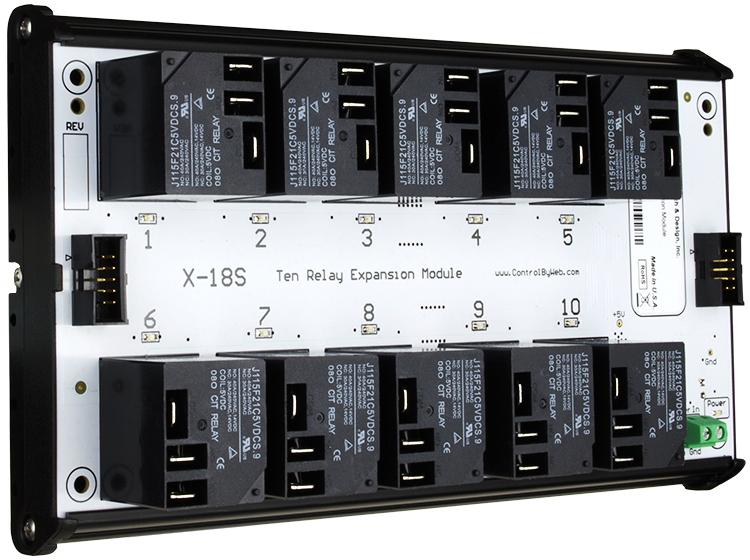

The X-18s™ expansion module is used with an X-400 or X-600M controller. The X-18s has ten, high-current relays, each with Form-C contacts (SPDT). Wiring connections are made directly to the relays using 1/4" tab terminals located on top of the relays.
This module is suitable for use with loads which require line voltages and high currents such as pumps, motors, lights and heaters. Attach multiple X-18s modules or a combination of expansion modules to the X-400 or X-600M for an I/O combination that is tailored to your specific needs.
Other expansion modules with different I/O combinations are also available.
Features:
- 10 Isolated relays (SPDT)
- Relay Functions:
- On
- Off
- Pulse
- Relay Connectors: 1/4 inch tab connectors
- Great for heavy-load applications including:
- Motors
- Solenoid valves
- Lights
- and much more...
- 11 LEDs for relays and power
- Power Supply: 9-28 VDC (24V recommended)
X-18s Part Number:
X-18s
OUTPUTS: 10 Relays (277VAC, 30VDC, 15A)
INPUTS: N/A
POWER SUPPLY: 9-28 VDC (24V recommended)
Electromagnetic Compliance:
- IEC CISPR 22, CISPR 24
- FCC 47CFR15 (Class B)
- EN55024 ITE Immunity (2010)
- EN55022 Emissions (2010)
Product Safety Compliance:
- IEC 61010-1
SPECIFICATIONS
| Relay Contacts | |
| Number of Relays | 10 |
| Max Voltage | 277VAC, 30VDC |
| Max Current | 15A |
| Contact Type | SPDT (Form C) |
| Load Type | General Purpose |
| Contact Resistance | < 30 milliohms initial |
| Contact Material | AgSnO2 |
| Electrical Life | 100K operations (Min) |
| Mechanical Life | 10M cycles (Min) |
| Environmental Rating | Over voltage Category II, Pollution Degree 2 |
| Relay Modes | On/Off or Pulsed |
| Pulse Timer Duration | 0.1 to 86,400 Seconds (1-day) |
| Connectors | |
| Relays | 1/4" tab connectors |
| Expansion Connector | Ribbon cable, 2x5-position, polarized 0.100" pitch |
| LED Indicators | |
| Number of LEDs | 11 (Power on; Relays 1-10) |
| Environmental | |
| Operating Temperature | -40°F to 150°F (-40°C to 65.5°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Humidity | 5-95%, non-condensing |
| Altitude | Up to 2,000m |
| Indoor use or NEMA-4 protected location | |
| Power Requirements | |
| Voltage | 9-28 VDC (24V recommended) |
| Max Current | See table below for typical values at 25°C. |
| 9 VDC Power Supply | |
| All Relays OFF | 18 mA |
| All Relays ON | 1200 mA |
| 12 VDC Power Supply | |
| All Relays OFF | 14 mA |
| All Relays ON | 880 mA |
| 24 VDC Power Supply | |
| All Opto-couplers & Relays OFF | 11 mA |
| All Opto-couplers & Relays ON | 450 mA |
| Physical | |
| Size | 8.60in (218.44mm) wide |
| Weight | 1.25 lb |
| Enclosure Material | PVC |
| Enclosure Flame Rating | UL94 V1 |
