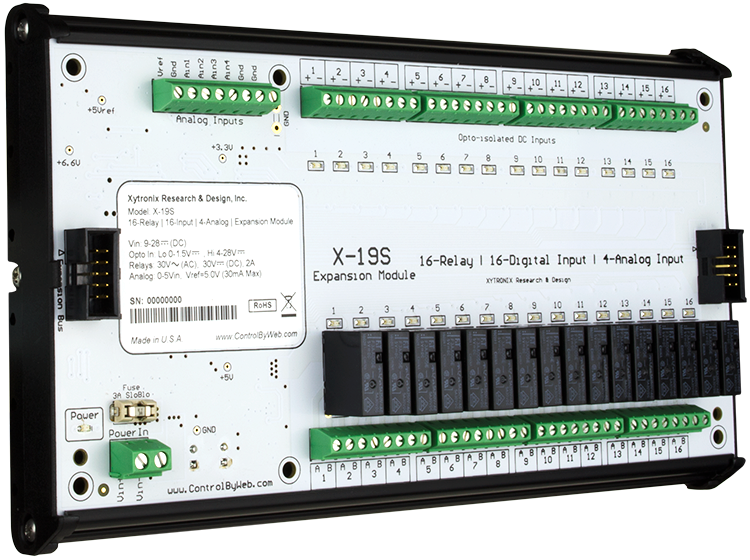

X-19s | 16 Relay, 16 Digital and 4 Analog Input Expansion Module

The X-19s™ expansion module is used with an X-400 or X-600M controller. The X-19s has 16 relays, 16 optically-isolated digital inputs, and 4 analog inputs. Screw terminal strips provide connections to the relays and inputs.
The X-19s is suitable for use in many applications from security systems to industrial controls where a high I/O count is required. It can be used to monitor freezer doors, light switches, and pulsed flow meters as well as control moderate loads such as solenoid valves, and lights.
Since the X-19s functions as a slave device to the X-400 or X-600M controller, the advanced features of the controller can be utilized with this module. For example scheduling, remote relay control, logging, counting, email alerts based upon single input state change or multiple input state changes, analog slope and offset calculations, and many other features are available. Attach multiple X-19s modules or a combination of expansion modules to the X-400 or X-600M for an I/O combination that is tailored to your specific needs.

Other expansion modules with different I/O combinations are also available.

Features:

• 16 isolated relays SPST
• Relay functions: ON/OFF or Pulsed
• Great for moderate-load applications including:

1. Solenoid valves
2. Lights
3. and much more moderate load applications

• PCB terminal block, screw connection, 3.81mm pitch
• 16 optically-isolated digital inputs
• Digital input functions:

1. Monitor State
2. Control Relays
3. Control Remote Relays
4. Count
5. Input Debounce

• 4 analog inputs
• 33 LEDs for outputs and power
• Power Supply: 9-28 VDC (24V recommended)

X-19s Part Number:

X-19s
OUTPUTS:

• 16 Relays (30VDC, 30VAC)

INPUTS:

• Digital Inputs: 16 (4-28VDC)
• Analog Inputs: 4 (0-5VDC)

POWER SUPPLY:

• 9-28 VDC (24V recommended)

Electromagnetic Compliance:

• IEC CISPR 22, CISPR 24
• FCC 47CFR15 (Class B)
• EN55024 ITE Immunity (2010)
• EN55022 Emissions (2010)

Product Safety Compliance:

• IEC 61010-1
