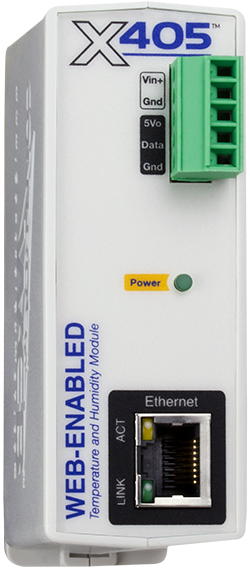

X-405 | Web-Enabled Temperature and Humidity Module

Features:

• 1-Wire Bus for up to 16 sensors (temperature, humidity, etc.)
• Monitor,log, and control up to 32 remote modules, or up to 100 I/O
• User Permissions: Admin, Manager, User
• Tasks

1. 50 Scheduled
2. 50 Conditional
3. 20 Override Schedules

• Send email alerts based on user-defined conditions (supports encrypted email servers, such as Gmail)
• Real-Time Clock with NTP server synchronization
• Automatic daylight savings and leap year adjustment
• No software required
• Customizable web-based Control Page
• BASIC script support for advanced flexibility
• Configurable logging
• Graphing (logged data)
• HTTPS/TLS encrypted
• Static or DHCP IP address configuration
• Modbus, SNMP, Remote Service, IP Filtering
• Field updatable
• Rugged DIN-Rail/wall-mountable enclosure

 Important Features:

• Reliable Wired Solution
  Simple. Reliable. Five-Year Warranty.
• Logging/Graphing
  Record Temperature/Humidity History
• Alerts
  Custom Email/Text Alerts
• Web-Enabled
  Monitor Temperature and Humidity from the Web

A Simple Solution for Temperature and Humidity Monitoring

1. The X-405™ is a fully-featured, web-enabled temperature and humidity module that targets industrial applications.
2. Monitor and log up to 16 sensors.
3. No software required, no programming necessary, and no subscription to buy.

       Built-In Web Server
The X-405 has a built-in web server so it can be set up, controlled, and monitored using a standard web browser (or by using our CBW Mobile smartphone app).

Applications - Industrial Internet of Things (IIoT)
The X-405 is perfect for thousands of temperature and humidity applications. Here are just a few examples:

       1. Greenhouse Monitoring - Simple Temperature/Humidity Monitoring
The X-405 can monitor the temperature and humidity of the greenhouse, and can be configured to send email alerts if the temperature or humidity goes outside user-specified parameters.

       2. Greenhouse Monitoring - Large Distributed System
The X-405 can also be used with other ControlByWeb products for larger applications. Using the peer-to-peer communication, The X-405 can share temperature data with other controllers in other parts of the building.
The following illustration shows the X-405 communicating with the X-410. With both PoE enabled modules, you have complete control over greenhouse environment from anywhere in the world.

       3. Freezer Temperature Monitoring
Monitor freezer temperatures remotely from your computer or mobile device and receive custom high/low email alerts.

 X-405 Basic Applications

       1. Monitor Equipment
Using the X-405, you can monitor equipment and machinery in different areas, and be alerted if the temperature gets too high.

       2. Outdoor Temperature Monitoring
The X-405 can be configured to send user-defined alerts based on temperatures recorded from the sensors connected directly to the module.

X-405 Part Numbers:

       1. X-405-I
INPUTS/OUTPUTS: Temp: Up to 16 sensors.
SPECIAL FEATURES: Task builder, email daily log file, add 100 I/O on up to 32 Remote I/O Modules
POWER SUPPLY: 9-28 VDC

       2. X-405-E
INPUTS/OUTPUTS: Temp: Up to 16 sensors.
SPECIAL FEATURES: Task builder, email daily log file, add 100 I/O on up to 32 Remote I/O Modules
POWER SUPPLY: POE and/or 9-28 VDC

Electromagnetic Compliance:

• IEC CISPR 22, CISPR 24
• EU EN55024, EN55022
• X-405-I: FCC 47CFR15 (Class B)
• X-405-E: FCC 47CFR15 (Class A)

Product Safety Compliance:

• IEC 61010-1

Real-Time Clock:

• Manual or NTP(Network Time Protocol) setup
• NTP Sync Period: Once, Daily, Weekly, On Powerup
• Auto Daylight Savings Adjustment
• Battery (capacitor) Power Backup
