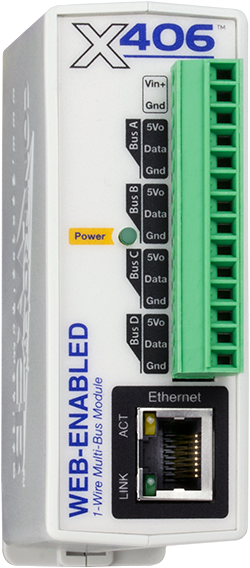

X-406 | Web-Enabled 1-Wire Multi-Bus Module

Features:

• Four independent 1-Wire Buses
• Connect up to 16 sensors per 1-Wire bus for monitoring up to 64 sensors (temperature, humidity, etc.)
• Monitor, log, and control 32 remote modules, or up to 100 I/O
• User Permissions: Admin, Manager, User
• Tasks

1. 50 Scheduled
2. 50 Conditional
3. 20 Override Schedules

• Send email alerts based on user-defined conditions (supports encrypted email servers, such as Gmail)
• Real-Time Clock with NTP server synchronization
• Automatic daylight savings and leap year adjustment
• No software required
• Customizable web-based Control Page
• BASIC script support for advanced flexibility
• Configurable logging
• Graphing (logged data)
• HTTPS/TLS encrypted
• Static or DHCP IP address configuration
• Modbus, SNMP, Remote Service, IP Filtering
• Field updatable
• Removable 14-Terminal connector for easy installation
• Rugged DIN-Rail/wall-mountable enclosure

 Important Features:

• Reliable Wired Solution
  Simple. Reliable. Five-Year Warranty.
• Logging/Graphing
  Record Temperature/Humidity History
• Alerts
  Custom Email/Text Alerts
• Web-Enabled
  Monitor Temperature and Humidity from the Web

A Simple Solution for Large-Scale Temperature and Humidity Monitoring

1. The X-406™ is a fully-featured, web-enabled temperature and humidity module with four, independent 1-Wire Buses.
2. Each 1-Wire Bus supports up to 16 sensors, for a total of up to 64 sensors.
3. No software required, no programming necessary, and no subscription to buy.

     Built-In Web Server
The X-406 has a built-in web server so it can be set up, controlled, and monitored using a standard web browser (or by using our CBW Mobile smartphone app).

Applications - Industrial Internet of Things (IIoT)

The X-406 is ideal for applications which require many 1-Wire sensors or isolation between sensors. For example:

       Server Room Monitoring
The X-406 is a very useful tool for monitoring server temperatures.

       1. Connect up to 64 Sensors
The X-406 features four 1-Wire Buses, making it optimal for monitoring the temperature of multiple servers. Each 1-Wire Bus can support up to 16 sensors for monitoring a total of up to 64 different server temperatures.

       2. Peer to Peer Communication
Link the X-406 to other ControlByWeb products for additional monitoring and control.

       3. Logging/Email Alerts
Enable logging to keep a real-time record of server temperatures over time. The X-406 can be configured to send custom email/text alerts if the sensor goes out of range.

X-406 Part Numbers:

       1. X-406-I
INPUTS/OUTPUTS: Temp: Up to 64 sensors.
SPECIAL FEATURES: Task builder, email daily log file, add 100 I/O on up to 32 Remote I/O Modules
POWER SUPPLY: 9-28 VDC

       2. X-406-E
INPUTS/OUTPUTS: Temp: Up to 64 sensors.
SPECIAL FEATURES: Task builder, email daily log file, add 100 I/O on up to 32 Remote I/O Modules
POWER SUPPLY: 9-28 VDC

Real-Time Clock:

• Manual or NTP(Network Time Protocol) setup
• NTP Sync Period: Once, Daily, Weekly, On Powerup
• Auto Daylight Savings Adjustment
• Battery (capacitor) Power Backup

Electromagnetic Compliance:

• IEC CISPR 22, CISPR 24
• EU EN55024, EN55022
• X-406-I: FCC 47CFR15 (Class B)
• X-406-E: FCC 47CFR15 (Class A)

Product Safety Compliance:

• IEC 61010-1
